Part no: 5P850IR | NSN: 6130-14-579-3728

Eaton 5P 850i Rack1U

Call for Details | Why Can't I See a Price?

Touchpoint can assist with new and refurbished equipment in most cases.

Request a Quote

  • Hidden
  • Hidden
  • Hidden

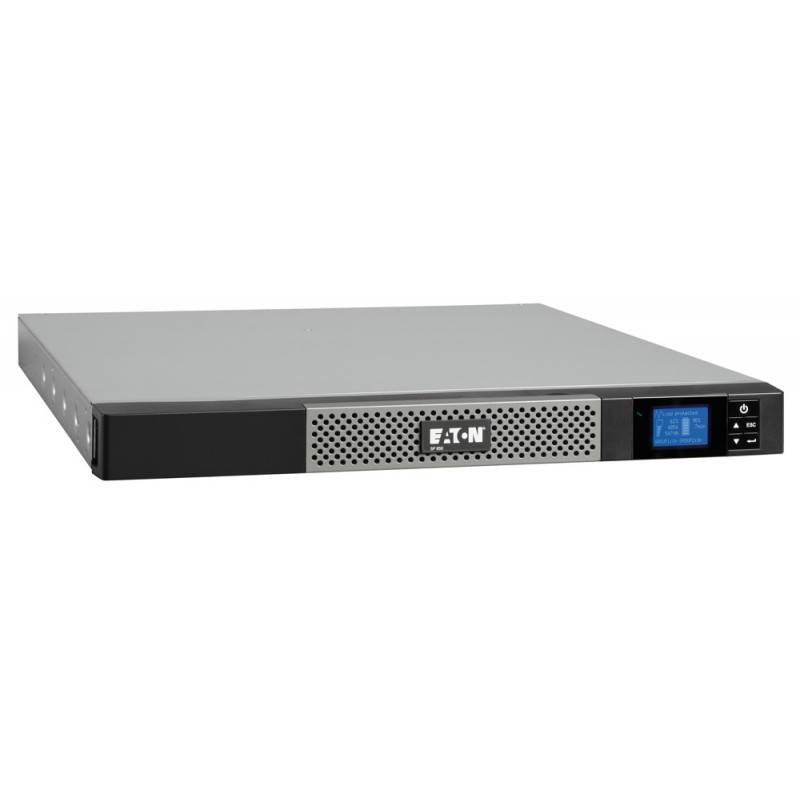

Eaton 5P 850i Rack1U

Part Number: 5P850IR

The Eaton 5P is a 850VA line interactive rack UPS with the Automatic Voltage Regulation (AVR), a sinewave output and an advanced, multilingual LCD display with energy metering features. The 5P possesses 6 IEC outlets including 3 remotely manageable outlets and hot swappable batteries. In order to increase battery lifetime, this UPS includes the Advanced Battery Management (ABM) technology. The 5P also features a connector for remote power off or remote on off function.

Type
Line-interactive
Wattage
600 W
VA rating
850 VA
Feature
With Display, Rack-mountable, AVR
Run time at half load
12 min at half load
Number of outlets
4 outlet
General
Device Type
UPS – rack-mountable
Height (Rack Units)
1U
Power Device
Input Voltage
AC 160-290 V
Input Voltage Range
AC 150 – 294 V
Frequency Provided
50/60 Hz
Frequency Required
50/60 Hz
Input Connectors
1 x power IEC 60320 C14
Power Output Connectors Details
4 x power IEC 60320 C13
Output Voltage
230 V 50/60 Hz
Max Electric Current
10 A
Output Waveform
Sinewave
Networking
Remote Management Interface
RS-232, USB
Miscellaneous
Features
Advance Battery Management (ABM), LCD display
Compliant Standards
TUV, UL 1778, CB, IEC 62040-3, IEC 62040-1-1, IEC 62040-2
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
35 °C
Sound Emission
40 dBA
Dimensions & Weight
Width
43.8 cm
Depth
50.9 cm
Height
4.32 cm
Weight
13.8 kg
