Part no: 9PX1000IRT2U

EATON 9PX 1000VA RACK/TOWER 10AMP INPUT 230V RAIL KIT INCLUDED

Call for Details | Why Can't I See a Price?

Touchpoint can assist with new and refurbished equipment in most cases.

Request a Quote

  • Hidden
  • Hidden
  • Hidden

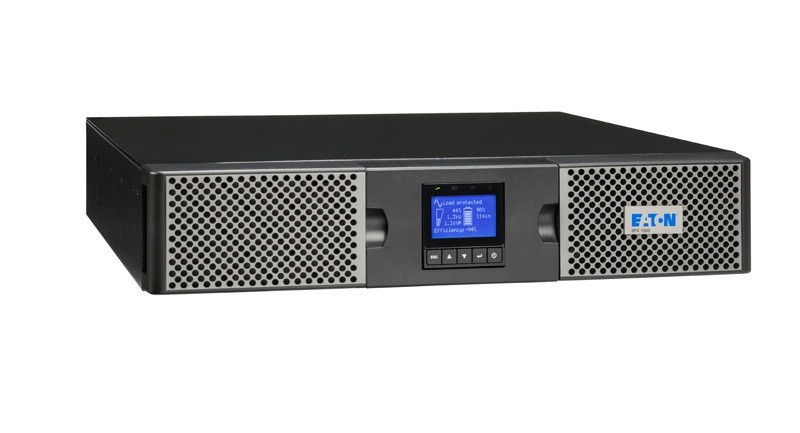

EATON 9PX 1000VA RACK/TOWER 10AMP INPUT 230V RAIL KIT INCLUDED

Part Number: 9PX1000IRT2U



The Eaton 9PX UPS provides energy-efficient power protection for small & medium Datacenters, IT rooms and Infrastructure. Delivering double conversion protection with 40% less energy usage and 28% more power 9PX is the perfect UPS for IT and Facility managers that are concerned by energy cost and are looking for next generation power protection solutions.
Type
On-line
Wattage
1,000 W
VA rating
1,000 VA
Feature
With Display, Rack-mountable, Hot Swappable
Run time at full load
6 min at full load
Run time at half load
16 min at half load
General
Device Type
UPS – rack-mountable / external
Height (Rack Units)
2U
Power Device
Input Voltage
AC 200/208/220/230/240 V
Input Voltage Range
AC 176 – 276 V
Frequency Provided
50/60 Hz
Frequency Required
40 – 70 Hz
Input Connectors
1 x power IEC 60320 C14
Power Output Connectors Details
1 x power IEC 60320 C14 8 x power IEC 60309 10A
Output Voltage
AC 200/208/220/230/240 V ± 1% – 50/60 Hz
Output Waveform
Sinewave
Circuit Protection
Fuse
Efficiency
98%
Total Harmonic Distortion (THD)
3 %
Battery
Type
Expandable
Quantity
4
Technology
Lead Acid
Voltage Provided
48 V
Capacity
7 Ah
Features
Maintenance free, sealed
Networking
Remote Management Interface
RS-232, USB
Expansion / Connectivity
Interfaces
1 x management (RS-232) – 9 pin D-Sub (DB-9) 1 x management (USB) – 4 pin USB Type B EPO (emergency power off)
Expansion Slots
1 (total) / 1 (free) x Expansion Slot
Miscellaneous
Included Accessories
Tower stand
Cables Included
Serial cable – external USB cable – external
Rack Mounting Kit
Included
Features
Audible alarm, LCD display, internal bypass, overload protection, cold-start function
Compliant Standards
CISPR 22 Class B, ICES-003, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, UL 1778, FCC Part 15 B, IEC 62040-3, IEC 62040-2, cULus, KC, EN 62040-2, EAC, RCM, EN 62040-3, IEC 62040-1, EN 62040-1
Environmental Standards
ENERGY STAR
Yes
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Humidity Range Operating
0 – 96% (non-condensing)
Sound Emission
47 dBA
