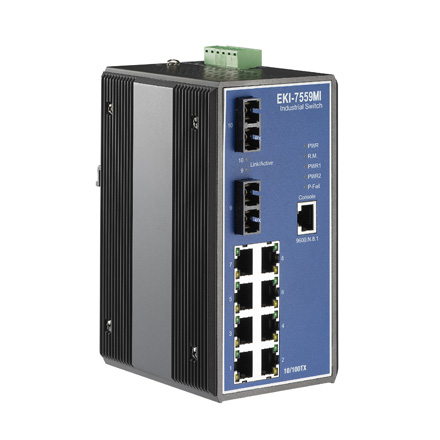

Advantech EKI-7559MI 8FE+2FE SC Multi-mode Managed Ethernet Switch, -40~75℃

Part Number: EKI-7559MI-AE



Both EKI-7554SI/MI and EKI-7559SI/MI support 2 SC type Fiber ports, EKI-7554SI/MI 4 Fast Ethernet ports and EKI-7559SI/MI can support up to 8 Fast Ethernet ports. To create reliability in your network, the EKI-7554SI/MI come equipped with a proprietary redundant network protocol — X-Ring that was developed by Advantech, which provides users with an easy way to establish a redundant Ethernet network with ultra high-speed recovery time less than 10 ms. Furthermore, EKI-7554SI/MI also supports many advanced network standards to optimize network performance, ease maintenance issues, and secure network safety.



Key Features

  • 2 x SC-type fiber ports, plus 8 Fast Ethernet ports
  • Redundancy: X-Ring (high-speed recovery time<10ms), RSTP/STP (802.1w/1D)
  • Management: Web, Telnet, Serial Console, SNMP
  • Control: VLAN/GVRP, QoS, IGMP Snooping/Query, LACP, Rate Limit
  • Security: IP/MAC, port binding, DHCP Server, IP access list, 802.1X, SNMPv3
  • Diagnostic: Port Statistic, Port Mirroring, RMON, Trap, Email Alert, Syslog
  • Dual 12 ~ 48 VDC power input and 1 Relay Output
  • Supports wide operating temperature -40 ~ 75° C



Click here to download datasheet from Advantech.
