Part no: EKI-7706G-2FI-AE

Advantech EKI-7706G-2FI 4GE+2G SFP Managed Ethernet Switch, -40~75℃

Call for Details | Why Can't I See a Price?

Touchpoint can assist with new and refurbished equipment in most cases.

Request a Quote

  • We are a B2B sales organisation & do not sell to individual consumers.
  • Hidden
  • Hidden
  • Hidden

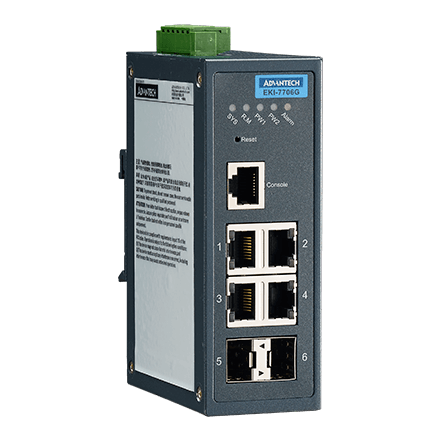

Advantech EKI-7706G-2FI 4GE+2G SFP Managed Ethernet Switch, -40~75℃

Part Number: EKI-7706G-2FI-AE


EKI-7706G-2F/2FI supports 4 Gigabit Ethernet ports and 2 SFP ports. It provides abundant ports to connect many devices and it is embedded with Advantech’s IXM function, which benefits users with fast deployment and can dramatically save engineers time and costs. The EKI-7706G series also supports NMS to help IT managers with networking maintenance and failure prevention. Finally, the EKI-7706G series is equipped with X-Ring Pro which can achieve ultra-high-speed recovery times of less than 20 ms to ensure network stability.


Key Features

  • 4 Gigabit Ethernet ports + 2 SFP ports
  • SFP socket for easy and flexible fiber expansion
  • Redundancy: X-Ring Pro (ultra high-speed recovery time < 20 ms), RSTP/STP (802.1w/1D)
  • IXM function enables fast deployment
  • Security: 802.1x (Port-based, MD5/TLS/TTLS/PEAP encryption), RADIUS
  • Management: SNMP v1/v2c/v3, WEB, Telnet, standard MIB, private MIB
  • -40 ~ 85 °C wide-range operating temperature (EKI-7706G-2FI)
  • Dual 12~48 VDC power input and 1 relay output


Click here to download datasheet from Advantech.
