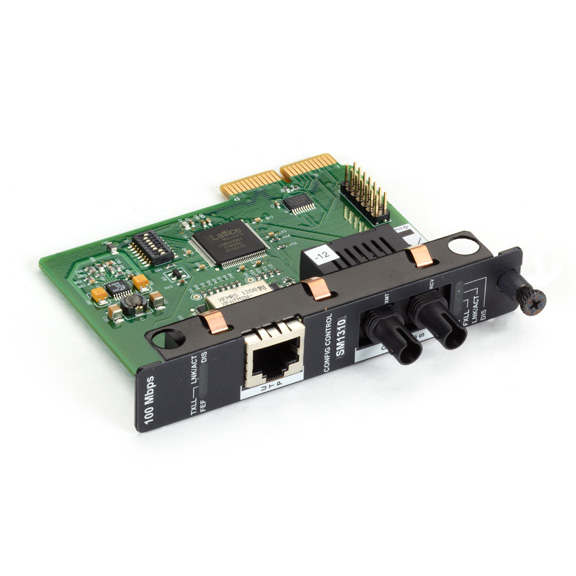

Black Box HDMCS II Fast Ethernet (100-Mbps) Managed Media Converter Layer 1 – 100-Mbps Copper to 100-Mbps Singlemode Plus, 1310nm, 40km, ST
Part Number: LMC5026C-R3
- Converts Fast Ethernet copper networks to single-mode fiber for 1000-Mbps network extension.
- Extends a network up to 40 kilometers (24.8 mi.) over single-mode cable.
- Installs in our High-Density Media Converter System II Chassis.
- LinkLoss™ notifies you of “silent failures” on the copper-to-fiber links.
| Approvals | |
| Compliance | FCC Part 15 Class A, UL, cUL |
| Chassis | |
| Power | Chassis Back Plane 5 VDC .8 A |
| Environmental | |
| Altitude | 10,000 ft |
| Humidity | 0 to 95 % non-condensing |
| Operating Humidity | 0 to 95 % non-condensing |
| Operating Temperature | 32° to 104° F (0° to 40° C) |
| Storage Temperature | 0° to 160° F (-20° to 70° C) |
| General | |
| CE Approval | Yes |
| Distance (Maximum) | Copper: 100 m; Fiber: 40 km |
| Interface | Single-mode ST, RJ45 |
| LAN Type | 100BASE-TX, 100BASE-FX/PLUS |
| Media Supported | Single-mode 1300 nm |
| Network Standards | IEEE 802.3u |
| RoHS | RoHS2 |
| SNMP Supported | SNMP |
| Speed | 100 Mbps |
| Interface | |
| Fiber | Single-Mode 1300 nm ST |
| Item Specifications | |
| Connectors | Duplex ST, RJ45 |
| Dimensions (Chassis) | 4.19″H x 0.78″W x 2.75″D (10.6 x 1.98 x 6.99 cm) |
| Indicators | Copper: Link Loss, Link Act; Fiber: Link Loss, Link Act |
| Weight | 0.25 lb (0.11 kg) |
