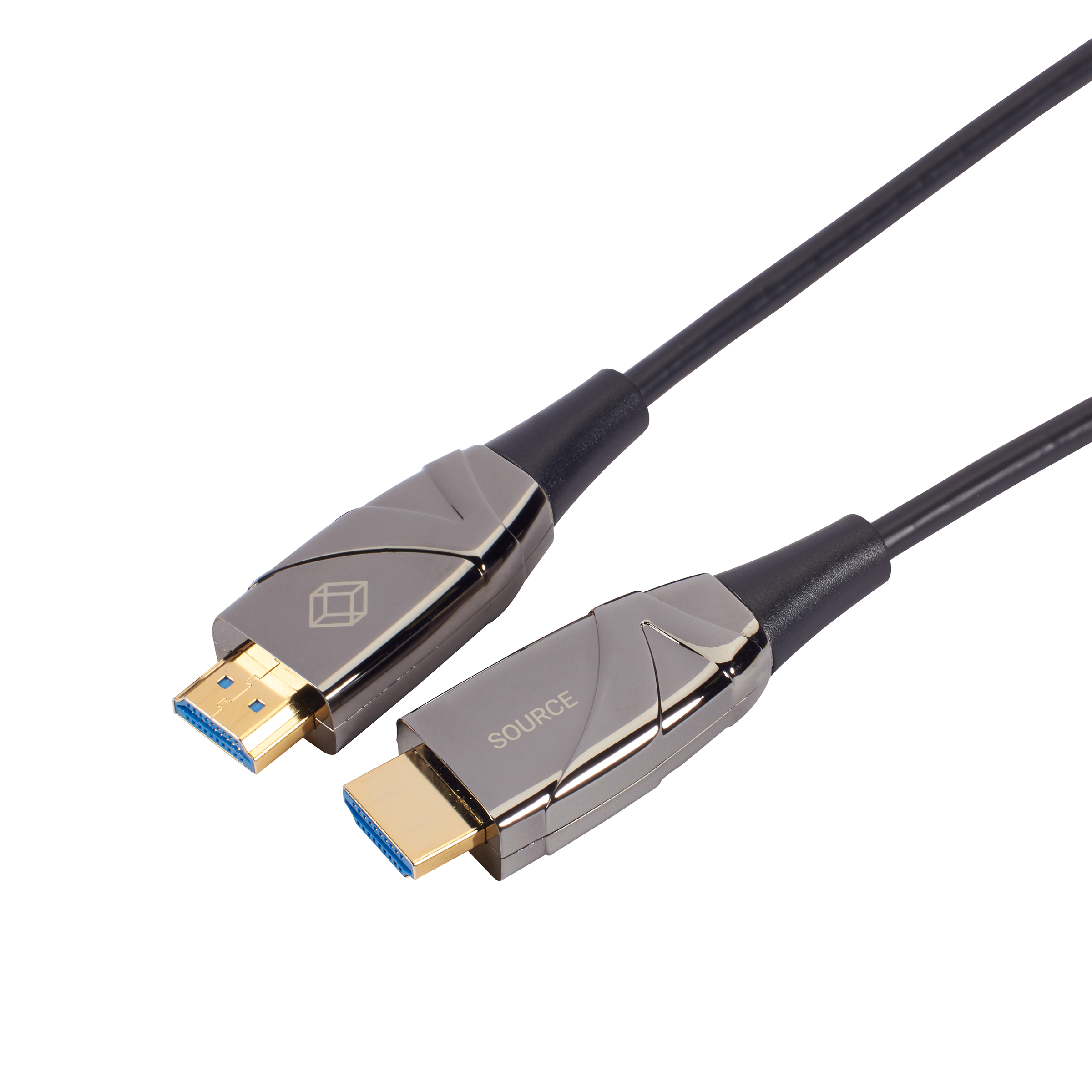

Black Box High-Speed HDMI 2.0 Active Optical Cable (AOC) – 4K60, 4:4:4, 18 Gbps, 50-m (164-ft.)
Part Number: AOC-HL-H2-50M
- Extend full 4096 x 2160 / 3840 x 2160 (4K) @ 60Hz 4:4:4 video signals up to 50m (164ft)
- Fully supports HDMI 2.0 spec, including ARC, 21:9 Aspect Ratio and more
- PCM, DTS-HD Master and Dolby Digital True HD Surround Sound compatible
- Practically Zero EMI/RFI profile for flawless performance
- Hybrid Fiber/Copper design requires no external power
- Supports HDCP 2.2 / EDID / DDC / CEC
| Environmental | |
| Storage Humidity | 5 to 89% RH, noncondensing |
| Storage Temperature | 14 to 158° F (-10 to 70° C) |
| Operating Humidity | 10 to 85% RH, condensing |
| Operating Temperature | 32 to 158° F (0 to 70 ° C) |
| General | |
| MTBF | 144,717,800 hours |
| Item Specifications | |
| Connector A | HDMI male |
| Connector B | HDMI male |
| Diameter (Outer) | 0.189” (4.8 mm) |
| Physical | |
| Fiber Glass Type | OM3 |
| Connector Plating | Gold |
| Jacket Material | LSZH |
| Fiber Mode | MM |
| Power | |
| Consumption | 250 mW |
| Video | |
| HDMI Standard | 2.0 |
| Color Depth (Maximum) | 30/36/48-bit Deep Color: 48-bit |
| Video Resolution (Maximum) | 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4) |
| Bandwidth | 18 Gbps |
