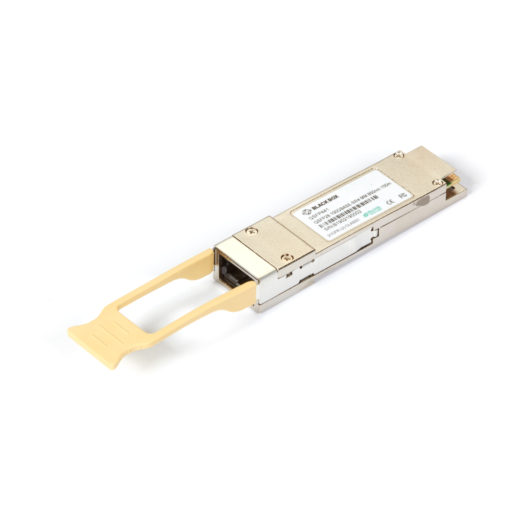

Black Box QSFP Series 100G (100-Gbps) SR4 QSFP28 - (1) 100-Gbps Multimode Fiber, 850nm, 70m, MPO QSFP441

Part no: QSFP441

Black Box QSFP Series 100G (100-Gbps) SR4 QSFP28 – (1) 100-Gbps Multimode Fiber, 850nm, 70m, MPO QSFP441

Call for Details

Request a Quote

  • We are a B2B sales organisation & do not sell to individual consumers.
  • We are located in Australia and in most cases will not be able to sell outside AU/NZ
  • This field is hidden when viewing the form
  • This field is hidden when viewing the form
  • This field is hidden when viewing the form

Black Box QSFP Series 100G (100-Gbps) SR4 QSFP28 – (1) 100-Gbps Multimode Fiber, 850nm, 70m, MPO

Part Number: QSFP441



  • Four-channel, full-duplex transceiver modules
  • Data transmission rate up to 26 Gbps per channel
  • Extends up to 70 meters on OM3 multimode fiber and 100 meters on OM4 multimode fiber
  • Built-in digital diagnostic function
  • RoHS 6 compliant
  • 3.3 V power supply voltage
  • MPO connector
  • Diagnostic monitoring interface



General
Distance (Maximum) 70 m (OM3); 100 m (OM4)
Input Voltage 3.3 V
Power 3.5 W
Speed 104 Gbps
Wavelength 850 nm
Item Specifications
Connectors MPO
Dimensions 0.34″ H x 0.72″ W x 4.72″ D (0.85 cm x 1.835 cm x 12 cm)
Weight 0.03 lbs (0.06 kg)
