Cisco Meraki MS120 Series Switches

Part no: MS120

Product Information

Talk to a specialist

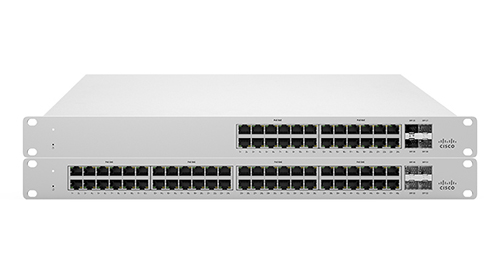

Meraki MS120 Series Switches

Series Number: MS120

Cisco Meraki MS120 switches provide Layer 2 access switching ideal for branch and campus deployments. The MS120 series features a variety of power options designed to meet the diverse needs of large enterprise networks. Cisco Meraki switches are built from the ground up for cloud management without compromising any of the power and flexibility traditionally found in enterprise-class switches.

Key Configurations

  • 24 / 48, x 10/100/1000BASE-T Ethernet RJ45 Ports, With or Without PoE Support
  • 4 x 1G SFP uplink
  • RJ45 Management port
  • 56 – 104 Gbps Switching Capacity
  • Fixed Internal Power Supply Configuration

Models Available

MS120-24-HW
24 x 10/100/1000BASE-T Ethernet RJ45 with auto-MDIX
crossover, 4 x 1G SFP uplink, RJ45 Management port, non PoE Switch
MS120-24P-HW
24 x 10/100/1000BASE-T Ethernet RJ45 with auto-MDIX
crossover, 4 x 1G SFP uplink, RJ45 Management port, 370 W PoE Switch
MS120-48-HW
48 x 10/100/1000BASE-T Ethernet RJ45 with auto-MDIX
crossover, 4 x 1G SFP uplink, RJ45 Management port, non PoE Switch
MS120-48LP-HW
48 x 10/100/1000BASE-T Ethernet RJ45 with auto-MDIX
crossover, 4 x 1G SFP uplink, RJ45 Management port, 370 W PoE Switch
MS120-48FP-HW
48 x 10/100/1000BASE-T Ethernet RJ45 with auto-MDIX
crossover, 4 x 1G SFP uplink, RJ45 Management port, 740 W PoE Switch
