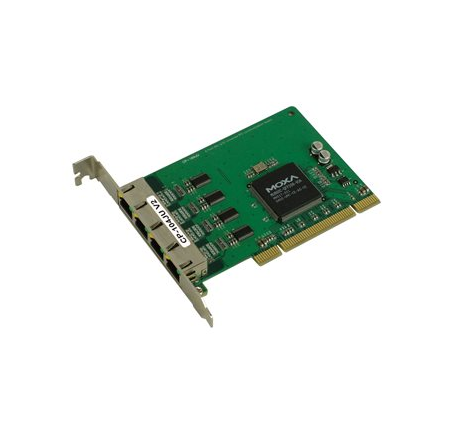

MOXA CP-104UL/104JU Smart Universal PCI Serial Boards

Part Number: CP 104UL



The CP-104UL and CP-104JU 4-port universal PCI boards are designed for POS and ATM applications. They are a top choice of industrial automation engineers and system integrators, and support many different operating systems, including Windows, Linux, and even UNIX. In addition, each of the boards’ RS-232 serial ports supports a fast 921.6 kbps baudrate. The CP-104UL and CP-104JU provide full modem control signals to ensure compatibility with a wide range of serial peripherals, and they work with both 3.3 V and 5 V PCI buses, allowing the boards to be installed in virtually any available PC server.



Key Features and Benefits

  • Over 800 kbps data throughput for top performance
  • 921.6 kbps maximum baudrate for fast data transmission
  • 128-byte FIFO and on-chip H/W, S/W flow control
  • Compatible with 3.3/5 V PCI and PCI-X
  • Drivers provided for a broad selection of operating systems, including Windows, Linux, and UNIX
  • Wide-temperature model available for -40 to 85°C environments



Click here to download datasheet from MOXA.
