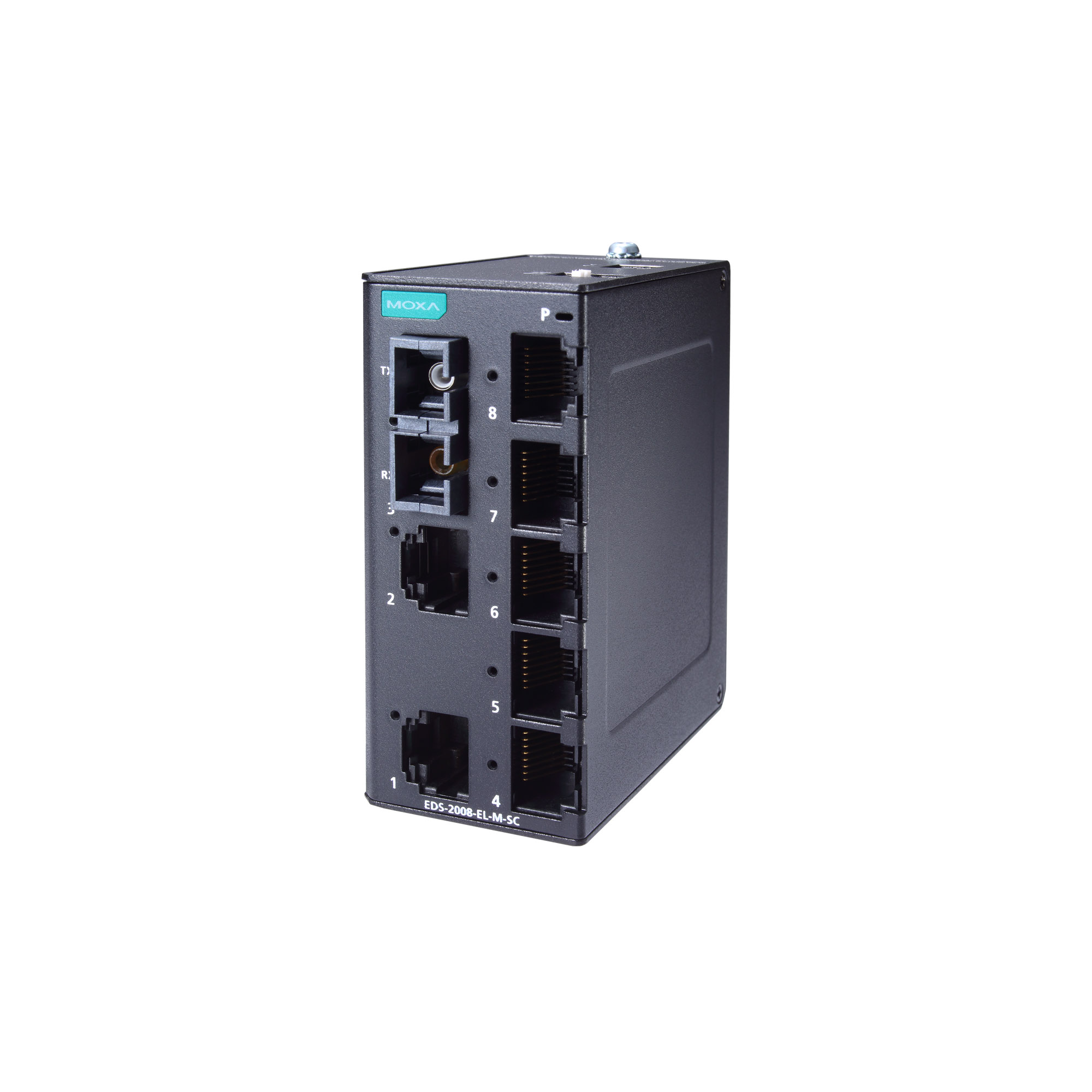

MOXA Unmanaged Ethernet Switch EDS-2008-EL-T

Part Number: EDS-2008-EL-T

The EDS-2008-EL series of industrial Ethernet switches have up to eight 10/100M copper ports, which are ideal for applications that require simple industrial Ethernet connections. To provide greater versatility for use with applications from different industries, the EDS-2008-EL Series also allows users to enable or disable the Quality of Service (QoS) function, and broadcast storm protection (BSP) with DIP switches on the outer panel. In addition, the EDS-2008-EL Series has a rugged metal housing to ensure suitability for use in industrial environments and fiber connections (Multi-mode SC or ST) can also be selected.
The EDS-2008-EL Series has a 12/24/48 VDC single power input, DIN-rail mounting, and high-level EMI/EMC capability. In addition to its compact size, the EDS-2008-EL Series has passed a 100% burn-in test to ensure it will function reliably after it has been deployed. The EDS-2008-EL Series has a standard operating temperature range of -10 to 60°C with wide-temperature (-40 to 75°C) models also available.

Ethernet Interface
10/100BaseT(X) Ports (RJ45 connector)
EDS-2008-EL: 8
EDS-2008-EL-M-ST: 7
EDS-2008-EL-M-SC: 7
Full/Half duplex mode
Auto MDI/MDI-X connection
Auto negotiation speed
100BaseFX Ports (multi-mode SC connector)
EDS-2008-EL-M-SC: 1
100BaseFX Ports (multi-mode ST connector)
EDS-2008-EL-M-ST: 1
Standards
IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X) and 100BaseFX
IEEE 802.3x for flow control
IEEE 802.1p for Class of Service
Switch Properties
Processing Type
Store and Forward
MAC Table Size
8 K
Packet Buffer Size
4 Mbits
