Part no: EDS-208 | NSN: 5930-01-586-4681

MOXA EDS-208 Unmanaged Ethernet Switches

Call for Details | Why Can't I See a Price?

Touchpoint can assist with new and refurbished equipment in most cases.

Request a Quote

  • We are a B2B sales organisation & do not sell to individual consumers.
  • Hidden
  • Hidden
  • Hidden

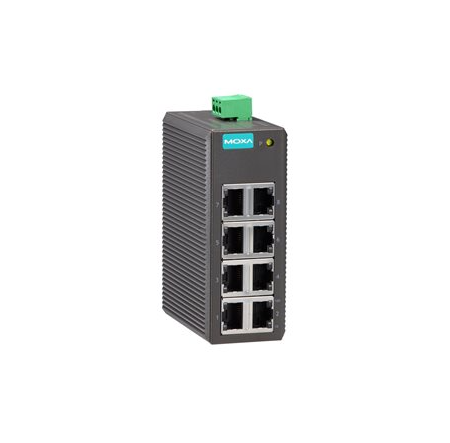

MOXA EDS-208 Unmanaged Ethernet Switches

Part Number: EDS-208



The EDS-208 Series supports IEEE 802.3/802.3u/802.3x with 10/100M, full/half-duplex, MDI/MDIX auto-sensing RJ45 ports. The EDS-208 Series is rated to operate at temperatures ranging from -10 to 60°C, and is rugged enough for any harsh industrial environment. The switches can be easily installed on a DIN rail as well as in distribution boxes. The DIN-rail mounting capability, wide operating temperature capability, and the IP30 housing with LED indicators make the plug-and-play EDS-208 switches easy to use and reliable.



Key Features and Benefits

  • 10/100BaseT(X) (RJ45 connector), 100BaseFX (multi-mode, SC/ST connectors)
  • IEEE802.3/802.3u/802.3x support
  • Broadcast storm protection
  • DIN-rail mounting ability
  • -10 to 60°C operating temperature range



Click here to download datasheet from MOXA.
