Part no: PX3-5500A1V

Raritan Rack PDU PX3-5500A1V

Call for Details | Why Can't I See a Price?

Touchpoint can assist with new and refurbished equipment in most cases.

Request a Quote

  • We are a B2B sales organisation & do not sell to individual consumers.
  • Hidden
  • Hidden
  • Hidden

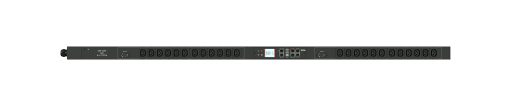

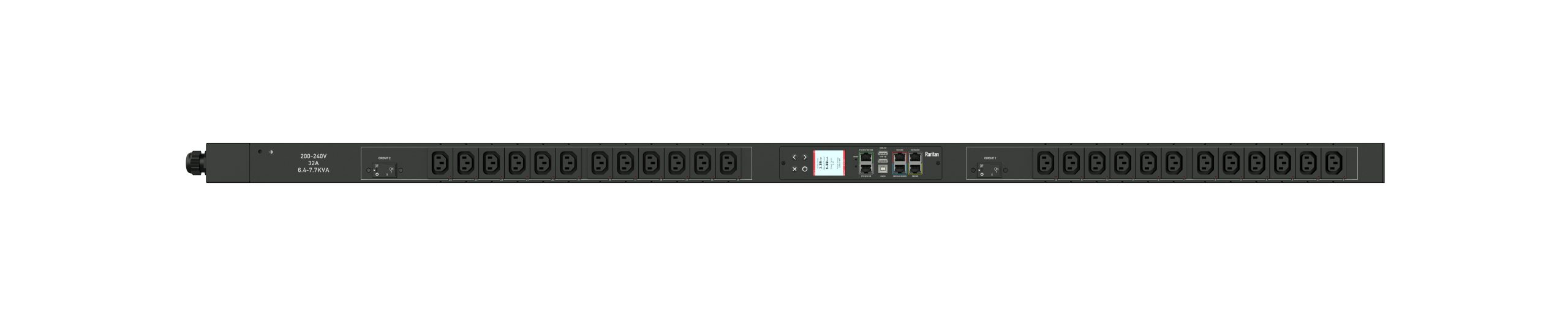

Rartian Rack PDU PDU PX3-5500A1V

Part number: PDU PX3-5500A1V

PDU PX3-5500A1V Power Distribution Units (PDUs)

  • Energy Metering: Voltage (V), Current (A), Active Power (kW), Real Power (kVA), Energy (kWh), Power Factor

    Metering Accuracy: ISO/IEC 62053-21 1%

    Remote Outlet Switching: Yes

    Metering per input line: Yes for all models

    Metering per Branch Circuit Breaker: Yes

    Environmental Sensor Ready: Yes

    Compatible Sensors: Temperature, Humidity, Air Flow, Differential Pressure, Water Leak, and Contact Closure.

    Cascading: Yes, Max 16 PDUs can be daisy chained using a USB or Ethernet connection.

    Networking: (10/100/1000 Base T) Ethernet, Secondary redundant (10/100/1000 Base T) Ethernet. Optional WiFi (802.11 a/b/g/n).

    Onboard Display: Color, matrix LCD display : Voltage, current, or active power (per line, per breaker, or per receptacle / outlet); Alarms; Configuration information (name, ratings, IP / Networking information). Auto-flip orientation.
