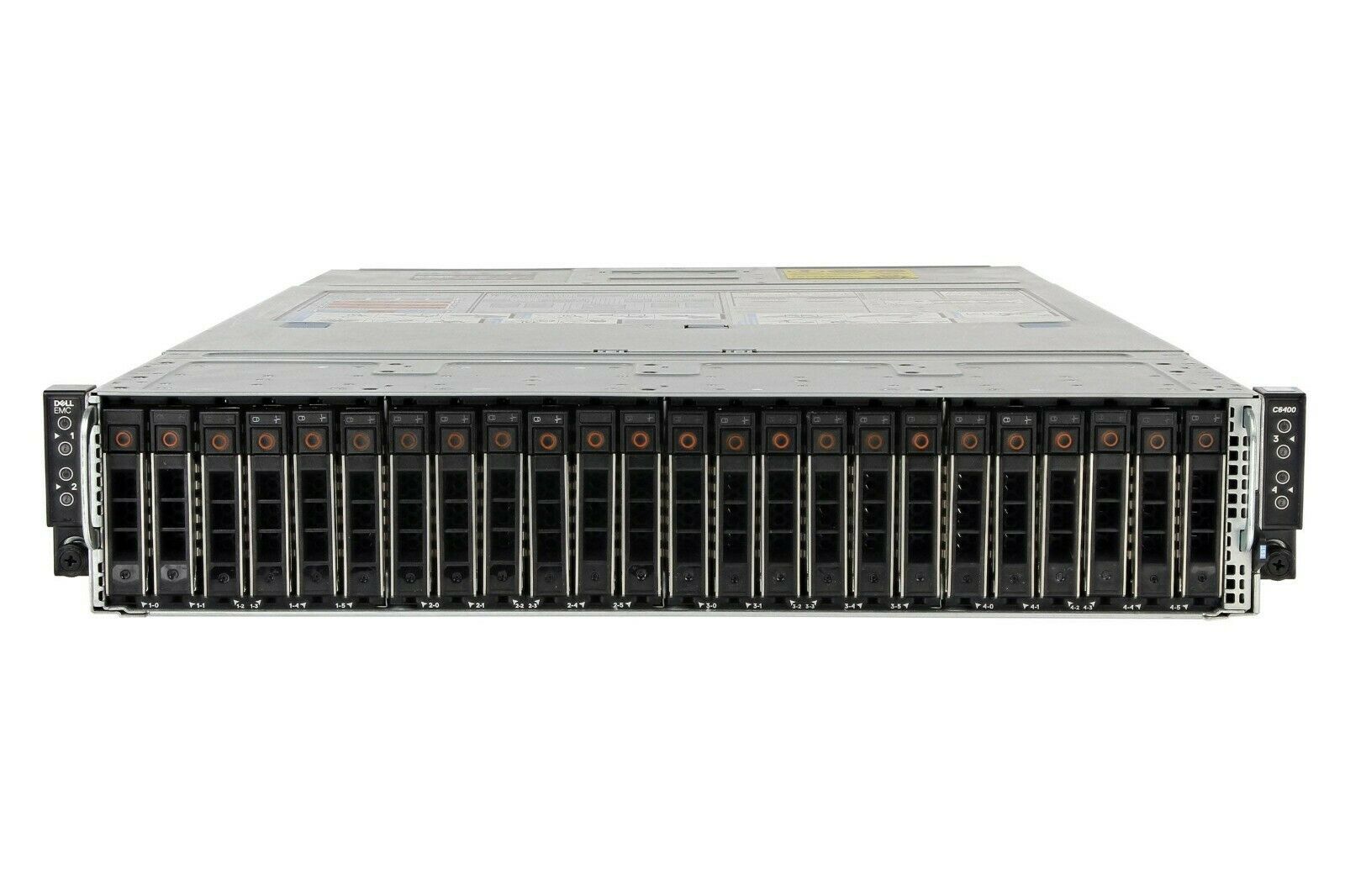

Dell PowerEdge C-Series Server Node 2U | C6520

Part Number: C6520



Your innovation engine

The Dell EMC PowerEdge C6520, powered by 3rd Generation Intel® Xeon® Scalable processors, is a dense compute node to address massive compute at scale.



A dense compute node to address extreme compute at scale

The Dell EMC PowerEdge C6520 is designed to support dynamic compute at scale business requirements in a dense form factor.

  • C6400 chassis maximizes density and performance per U by supporting up to 4 dual-socket PowerEdge C6520 compute nodes in a 2U chassis
  • Supports 8 channels per CPU, up to 16 DDR4 DIMMs at 3200 MT/s DIMM speed
  • Address substantial throughput improvements with PCIe Gen 4 and up to 6 NVMe drives per node
  • Ideal for hyperscale compute workloads requiring high scalability and high performance



Configuration Options

Processor

Up to two 3rd Generation Intel® Xeon® Scalable processors per node, with up to 40 cores per processor
Direct Contact Liquid Cooling (DCLC) option: Yes

Operating System

Canonical® Ubuntu® Server LTS
Citrix® Hypervisor®
Microsoft® Windows Server® with Hyper-V
Red Hat® Enterprise Linux
SUSE® Linux Enterprise Server
VMware® ESXi®/vSAN CentOS
Windows Preinstallation Environment (WinPE) 64-bit drivers

Chipset

Intel® C620 series chipset

Accelerators

Low-profile (Half-height) 75 W GPU

Memoryi

DIMM Speed
Up to 3200 MT/s

Memory Type
RDIMM
LRDIMM

Memory Module Slots
16 DDR4 DIMM slots

Maximum RAM
RDIMM 1 TB
LRDIMM 2 TB

Storage

Front Bays
Up to 12 x 3.5-inch SAS/SATA (HDD/SSD) drives max 92.16 TB
Up to 24 x 2.5-inch SAS/SATA (HDD/SSD)/NVMe drives max 368.64 TB

System with no backplane

Storage Controllers

Internal Controllers
PERC H745, HBA345, S150, H345

Internal Boot
Boot Optimized Storage Subsystem (BOSS-S1): HWRAID 2 x M.2 SSDs, uSD card

Security

TPM 1.2/2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ
Digitally Signed Firmware
Chassis Intrusion Alert
Secure Boot
Secure Erase
Silicon Root of Trust
System Lockdown (requires iDRAC Enterprise or Datacenter)

Management

Embedded/At-the-Server
iDRAC9
iDRAC Direct
iDRAC Service Module

Consoles
OpenManage Enterprise
OpenManage Power Manager plugin
OpenManage SupportAssist plugin
OpenManage Update Manager plugin

Mobility
OpenManage Mobile

Tools
RACADM CLI
iDRAC RESTful API with Redfish
IPMI
System Update Utility Update Catalogs

OpenManage Integrations
VMware vCenter and vRealize Operations Manager
Microsoft® System Center
Redhat® Ansible Modules
BMC Truesight

OpenManage connections
IBM Tivoli® Netcool/OMNIbus
IBM Tivoli® Network Manager IP Edition
Micro Focus® Operations Manager
Nagios® Core
Nagios® XI

Power Supplies

1600 W Platinum Dual hot-plug redundant 100 – 240 V AC
2000 W Platinum Dual hot-plug redundant 100 – 240 V AC
2400 W Platinum Dual hot-plug redundant 100 – 240 V AC
2600 W Platinum Dual hot-plug redundant 100 – 240 V AC

Ports

Network Options
1 x 1 GbE LOM riser
1 x OCP 3.0

Rear Ports
1 x iDRAC Direct port (Micro-AB USB)
1 x Mini-DisplayPort
1 x iDRAC or NIC or RJ45 port
1 x USB 3.0

Slots

2 x PCIe x16 Gen4 Risers with support for SNAP I/O modules (Low-profile, Half-height, and Half-length)
1 x OCP 3.0 x16 Gen4 (for network controller)
1 x PCIe x8 Gen4 M.2 Riser (for M.2 Boot Device)

Form Factor

Up to 4 independent hot-swappable
2-socket C6520 sleds in a 2U C6400 chassis

Dimensions & Weight

Height
40.1 mm (1.58 inches)

Width
174.4 mm (6.86 inches)

Depth
570.34 mm (22.45 inches)

Weight
Max 45.6 kg (100.53 lbs.) for 12 x 3.5-inch drive



View the full Spec Sheet from Dell EMC
