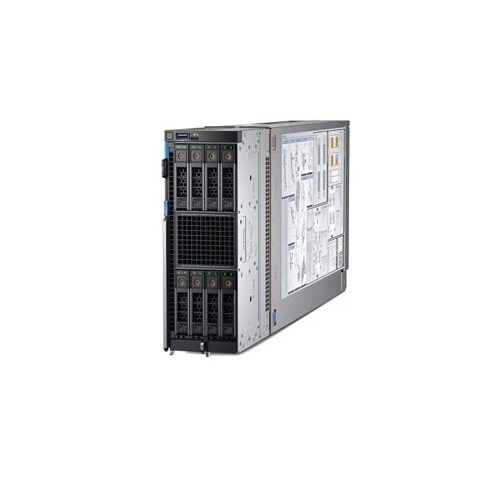

Dell PowerEdge MX840c Compute Sled

Part Number: MX840c



Set the foundation for the modern data center

Designed for Dell EMC’s PowerEdge MX kinetic infrastructure ecosystem, the PowerEdge MX840c server, with dense compute, exceptionally large memory capacity and highly expandable storage subsystem, delivers the flexibility and agility needed in today’s demanding, shared-resource environments.

  • Double-width; up to four sleds per PowerEdge MX7000 chassis.
  • Two or four, up to 28-core second-generation Intel® Xeon® Scalable processors per sled, up to 448 cores per chassis.
  • Up to 48 DDR4 DIMMs slots, 6 TB max memory and speeds up to 2933MT/s; up to 192 DIMMS per chassis for up to 24.5TB max memory.
  • Supports up to 24 DIMM slots for Intel® Optane™ DC persistent memory DCPMM (12.2TB) with a maximum total capacity of 15.36TB per server.
  • Up to eight 2.5″ drive bays for SAS/SATA (HDD/SDD) and NVMe PCIe SSD support plus optional M.2 boot.



Dynamically configure for optimal workload performance and efficiency

PowerEdge MX architecture disaggregates and granularly reassigns resources, maximizing utilization, minimizing overprovisioning and stranded infrastructure. PowerEdge MX840c fully configurable, no compromise compute maximizes scalability to enhance workload performance and optimization.

  • Scale compute resources with second-generation Intel® Xeon® Scalable processors and tailor performance based on your unique workload requirements.
  • Flexible memory configurations from capacities of 8GB to 6TB; RDIMMs and LRDIMMs for reduced memory loading and greater density.
  • Large, high-performance onboard storage footprint with double the HDD drives per compute sled.



Intelligently automate to accelerate deployment and provisioning

Deploy and provision PowerEdge MX servers faster and automate daily operations with agent-free lifecycle management. Unify and simplify management of compute, storage and fabric with Dell EMC OpenManage Enterprise – Modular Edition within the MX7000 chassis.

  • Up to four times more performance with integrated Dell Remote Access Controller 9 (iDRAC9) for easy lifecycle management from deploy to retirement.
  • Sixteen fewer steps and 30% time savings to perform basic server setup using Android or Apple mobile device with Quick Sync 2 .
  • Full Lifecycle Management of more than 5,000 nodes within 611 chassis over 7 continents simultaneously on a single OpenManage Enterprise console.

View the full Spec Sheet from Dell EMC
