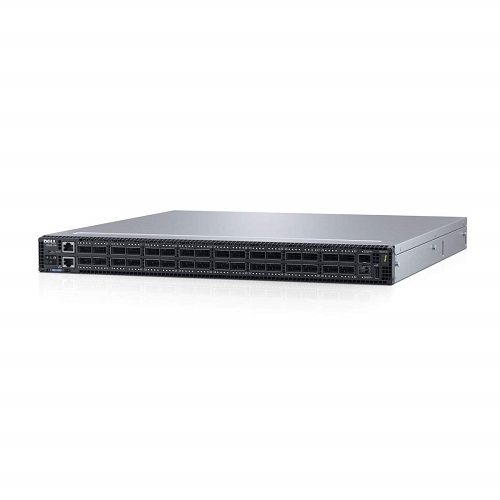

Dell EMC PowerSwitch Z9100-ON

Part Number: Z9100-ON

Fixed form factor switch for high-performance data center and computing environments
Switching Capacity (Full Duplex): 6.4 Tbbps
Forwarding Capacity (Tpps): 3.5
Buffer Size: 16MB
Latency: L2: 300ns, L3: 400ns

  • 2 1/10GBase-T
  • 128 (breakout) + 2 10 GbE
  • 128 (breakout) 25 GbE
  • 32 40GbE
  • 64 (breakout) 50GbE
  • 32 100GbE
    Power Consumption (W): 605 (max)/195 (normal)


High-performance 1/10/25/40/50/100GbE multi-rate open networking fixed switch featuring Dell EMC Networking OS9

Data center optimized
The Dell EMC Z9100-ON is a 10/25/40/50/100GbE fixed switch purpose-built for applications in high-performance data center and computing environments. Leveraging a non-blocking switching architecture, the Z9100-ON delivers line-rate L2 and L3 forwarding capacity to maximize network performance. The compact Z9100-ON design provides industry-leading density of either 32 ports of 100GbE, 64 ports of 50GbE, 32 ports of 40GbE, 128 ports of 25GbE or 128 ports 10GbE and two SFP+ ports of 10GbE/1GbE/100MbE to conserve rack space while enabling denser footprints and simplifying migration to 100Gbps in the data center core. Priority-based flow control (PFC), data center bridge exchange (DCBX) and enhanced transmission selection (ETS) make the Z9100-ON ideally suited for DCB environments. In addition, the Z9100-ON incorporates multiple architectural features that optimize data center network flexibility, efficiency and availability, including redundant, hot-swappable power supplies and fans. These new offerings provide the flexibility to transform data centers and offer high-capacity network fabrics that are easy to deploy, cost-effective and provide a clear path to a software-defined data center. The Dell EMC Z9100-ON supports the industry standard Open Network Install Environment (ONIE) for zero touch installation of alternate network operating systems. This document refers to this ON switch preloaded with the Dell EMC Networking OS. Characteristic of any ONIE device, other ONIE load images may be loaded by the operator.

Key applications
• Active Fabric™ implementation using high-density multi rate 10/25/40/50/100GbE ToR server aggregation in high-performance data center environments at the desired fabric speed
• Small-scale Active Fabric implementation via the Z9100-ON switch in leaf and spine along with S-Series 1/10/40GbE ToR switches enabling cost-effective aggregation of 10/40/50/100GbE uplinks
• High-performance SDN/OpenFlow 1.3.1 enabled with ability to interoperate with industry standard OpenFlow controllers
• Use as a high-speed VXLAN Layer 2 Gateway that connects the hypervisor based overlay networks with non-virtualized infrastructure
