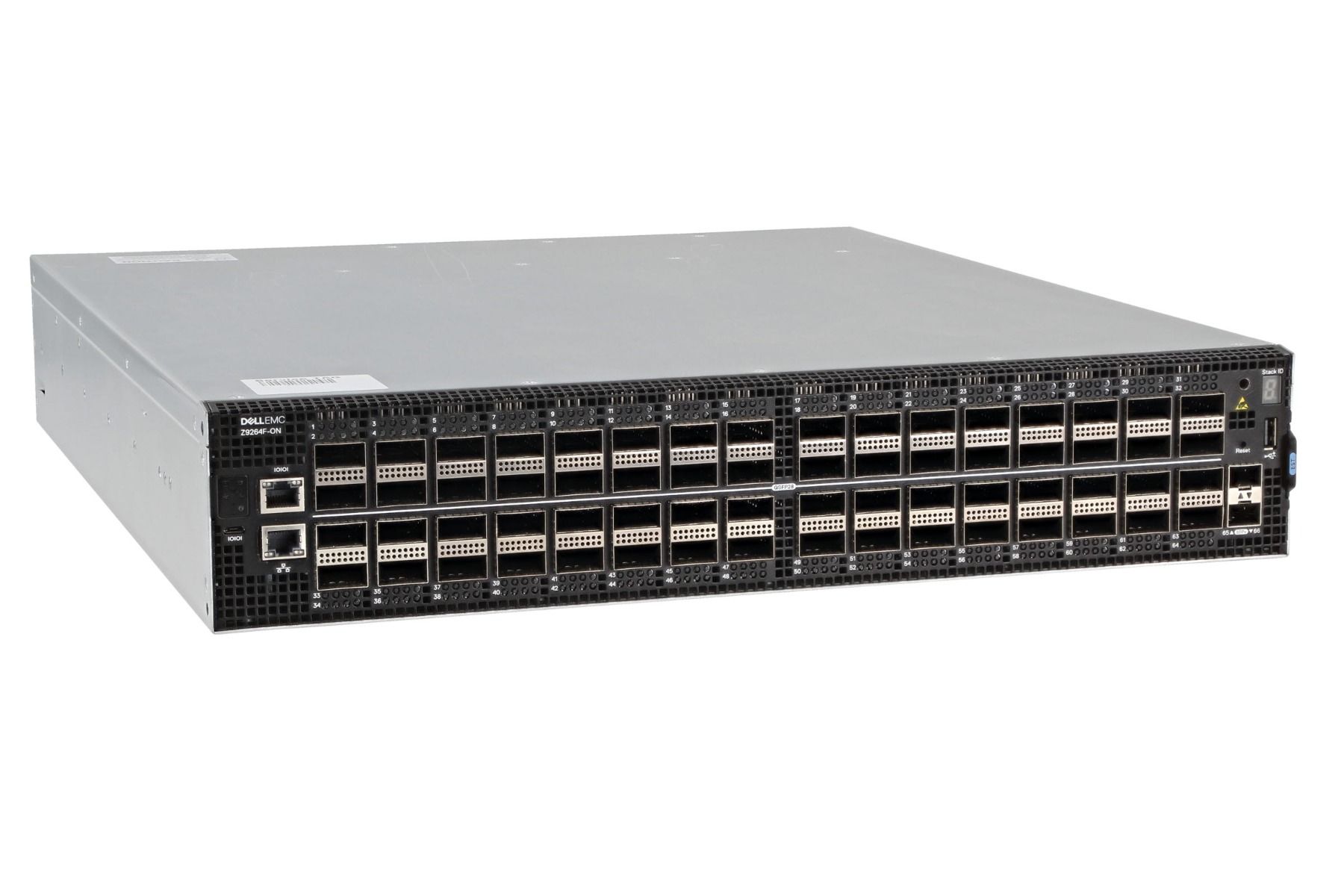

Dell EMC PowerSwitch Z9264F-ON

Part Number: Z9264F-ON

High-performance, high-density 100GbE multi-rate aggregation switch
Switching Capacity (Full Duplex): 12.8 Tbbps
Forwarding Capacity (Tpps): 2.9 for 64 < packet size < 250 bytes 4.2 when average size > 250 bytes
Buffer Size: 42MB
Latency: 300ns L2/400ns L3
Ports:

  • 128 (breakout) + 2 1GbE (SFP)
  • 128 10 GbE
  • 128 (breakout) 25 GbE
  • 64 40GbE
  • 128 (breakout) 50GbE
  • 64 100GbE
    Power Consumption (W): 750 (max)/340 (normal)
    More…

DELL EMC POWERSWITCH Z9264F-ON SERIES SWITCHES

High-performance, high-density open networking 100GbE multi rate aggregation switch

The Z9264F-ON 40/100GbE fixed switch comprises Dell Technologies’ latest disaggregated hardware and software data center networking solutions, providing state-of-the-art, high-density 40/100GbE ports and a broad range of functionality to meet the growing demands of today’s data center environment. These innovative, next-generation open networking high-density aggregation switches offer optimum flexibility and costeffectiveness for the web 2.0, enterprise, mid-market and cloud service provider with demanding compute and storage traffic environments. The compact Z9264F-ON provides industry-leading density of either 64 ports of 40/100GbE in QSFP28 form factor or 128 ports of 1/10/25/40/50GbE (via breakout), in a 2RU design. Using industry-leading hardware and a choice of Dell EMC’s OS10 or select 3rd party network operating systems and tools, the Z9264F-ON switch incorporates multiple architectural features that optimize data center network flexibility, efficiency and availability, including IO panel to PSU airflow or PSU to IO panel airflow for hot/ cold aisle environments, redundant, hot-swappable power supplies and fans and delivers nonblocking performance for workloads sensitive to packet loss. The compact Z9264F-ON model provides multi-rate speed, enabling denser footprints and simplifying migration to 100Gbps. Priority-based flow control (PFC), data center bridge exchange (DCBX) and enhanced transmission selection (ETS) make the Z9264F-ON ideally suited for DCB environments. Dell EMC PowerSwitch Z9264F-ON switches support the open source Open Network Install Environment (ONIE) for zero touch installation of Dell EMC SmartFabric OS10 networking operating system, as well as of alternative network operating systems.

Key applications
• Organizations looking to enter the software-defined data center era with a choice of networking technologies designed to maximize flexibility
• High-density multi-rate 40/100GbE ToR server aggregation in highperformance data center environments at the desired fabric speed
• Small-scale Fabric implementation via the Z9264F-ON switch in leaf and spine along with S-Series 1/10/25/40GbE ToR switches enabling cost-effective aggregation of 10/25/40/50/100 uplinks
• High-density 1/10/25/50GbE ToR server access in highperformance data center environments
• Multi-functional 10/25/40/50/100GbE switching in High Performance Computing Clusters or other business-sensitive deployments requiring the highest bandwidth.
• iSCSI and FCOE deployment, including DCB converged lossless transactions
• L2 VXLAN support

View the full data sheet from Dell
