Part no: PTX10001-36MR

JUNIPER PTX Series Router PTX10001-36MR

for Best Price | Why Can't I See a Price?

Touchpoint can assist with new and refurbished equipment in most cases.

Request a Quote

  • Hidden
  • Hidden
  • Hidden

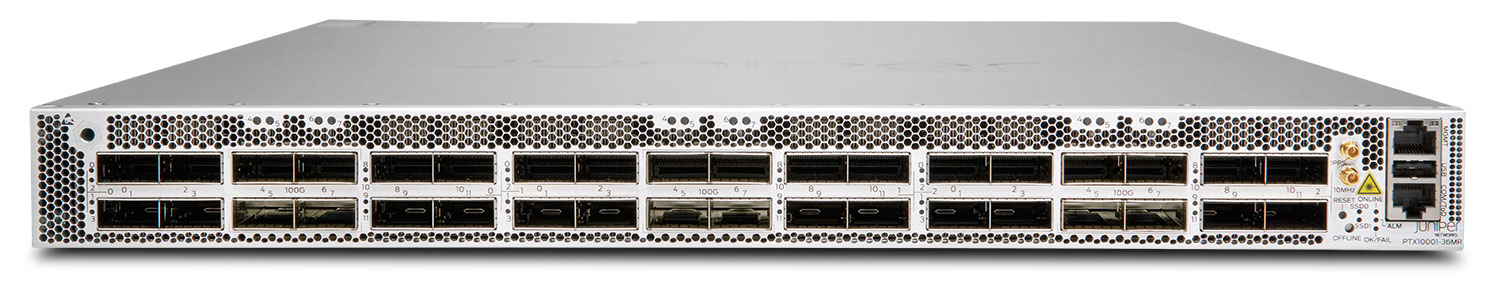

JUNIPER PTX Series Router PTX10001-36MR

Part Number: PTX10001-36MR

Overview

Fast-growing applications such as telco cloud, 5G mobility, artificial intelligence (AI), and 4K video streaming are placing massive bandwidth demands on networks, driving the need for more scalable, flexible, and secure infrastructures. To keep pace with relentless growth, network operators are looking toward high-density, high-efficiency 100GbE and 400GbE platforms built for the most demanding environments.

The fixed, 400GbE cloud-optimized PTX10001-36MR Packet Transport Router addresses these demands through scale-out architectures. It’s designed to help cloud providers, service providers, Internet Exchange, public sector agencies, and enterprise businesses drive down their cost per bit.

The router delivers integrated, multilayer security, including native 400G inline MACsec, industry-leading telemetry at scale, and unprecedented power at 0.14 Watts per gigabit. It brings engineering simplicity and network design together for a natural upgrade path from 100GE to 400GE.

Additionally, the PTX10001-36MR offers extraordinary capacity to space- and power-constrained environments, supporting a wide range of use cases such as peering, label-switching router (LSR) core, content delivery network (CDN) gateway, aggregation, Data Center Interconnect (DCI), and many more.

The PTX10001-36MR operates at 9.6 Tbps in a compact, 1 U form factor featuring flexible interface configuration options with universal multirate QSFP-DD for 100GbE and 400GbE. It supports 120 10GbE ports with QSFP+ breakout, 60 100GbE ports with QSFP28-DD (24×2) and QSFP28 (12), 108 100GbE ports with QSFP56-DD breakout (24×4) and QSFP28 (12), and 24 400GbE ports with QSFP56-DD.

Specifications

System Capacity 9.6 Tbps
Slot Capacity N/A
Chassis Per Rack 40
Dimensions (W x H x D) 17.3 x 1.75 x 25.5 in (44 x 4.45 x 64.8 cm)
Maximum Weight 39.7 lbs (18.0 kg)
Mounting Front rack mount
Power System Rating (Max) 2164 W (AC, DC), 7384 BTU/hr
Operating Temperature 32° to 115° F (0° to 46° C)
Humidity Relative humidity operating: 5 to 90% (noncondensing)
Altitude Operating altitude: Up to 10,000 ft. (3048 m)
10G/40G/100G/200G/400G 120/30/108/48/24

View the full data sheet from Juniper
