Part no: PTX10002

JUNIPER PTX Series Router PTX10002

for Best Price | Why Can't I See a Price?

Touchpoint can assist with new and refurbished equipment in most cases.

Request a Quote

  • Hidden
  • Hidden
  • Hidden

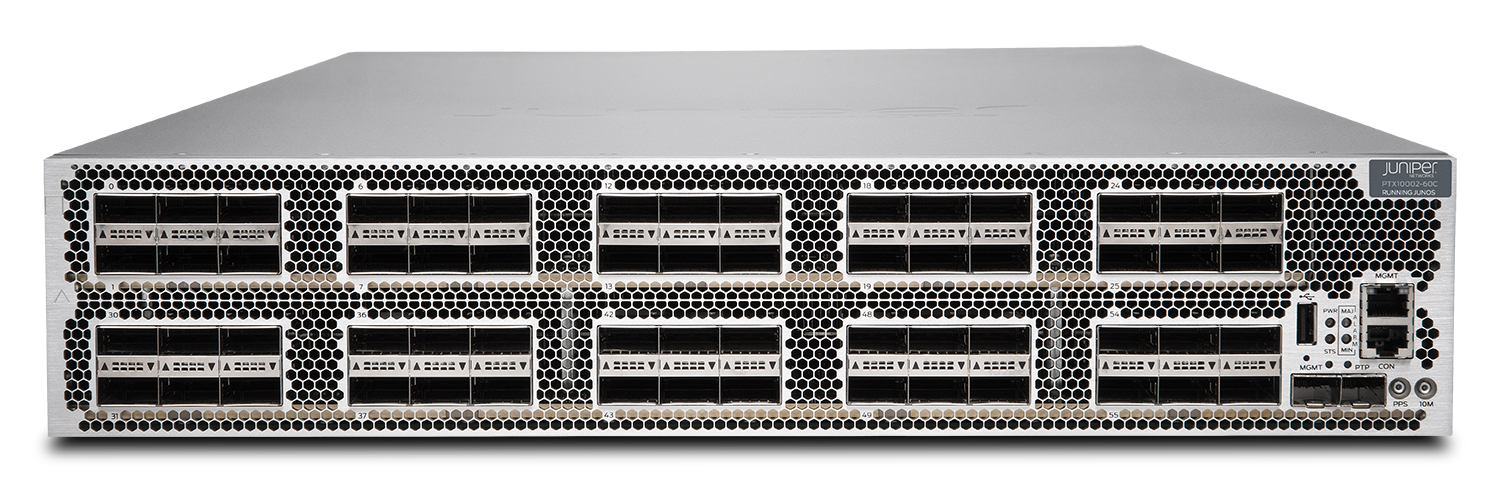

JUNIPER PTX Series Router PTX10002

Part Number: PTX10002

Overview

The space-efficient PTX10002 is designed to scale for exponential traffic growth in cloud and service provider networks. It addresses power and 100GbE interconnect challenges, and is ideal for space-constrained peering and collocation facilities and central office locations in emerging markets where space and power are at a premium.

With the PTX10002, you can build a core architecture that optimizes IPv6, label-switching router (LSR), Internet peering, and distributed metro deployments.

Powered by our custom ExpressPlus silicon, the PTX10002 scales to 6 Tbps of throughput, delivering the capacity you need for long-term investment protection. It also has the functionality required to meet IP/MPLS core router applications while eliminating the complex packet profiles found in other vendors’ over-engineered network processing units (NPUs).

By offering the industry’s highest 100GbE port density—up to 60 ports in a 2 U form factor—the PTX10002 enables you to seamlessly scale your core network from 10GbE and 40GbE architectures to 100GbE. The PTX10002 gives you a practical solution for keeping pace with evolving distributed core architecture requirements.

Specifications

System Capacity 6 Tbps
Slot Capacity N/A
Chassis Per Rack 24
Dimensions (W x H x D) 17.4 x 3.46 x 31 in (44.2 x 8.8 x 78.7 cm)
Maximum Weight 68 lb (31 kg)
Mounting Front or center rack mount
Power System Rating (Max) 40 A @ -48 VDC
Operating Temperature 32° to 115° F (0° to 46° C)
Humidity Relative humidity operating: 5 to 90% (noncondensing)
Altitude Up to 10,000 ft. (3048 m)
10G/40G/100G 192/60/60

View the full data sheet from Juniper
