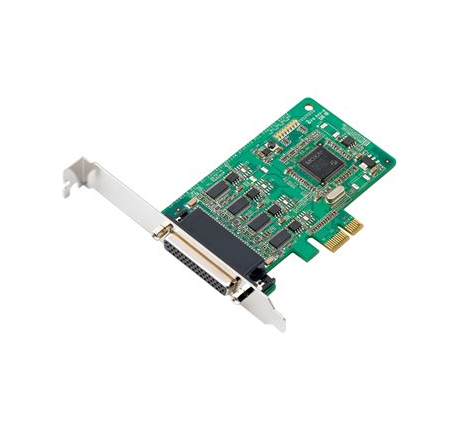

MOXA CP-114EL-1 PCI Express Boards

Part Number: CP-114EL-1



The CP-114EL Series of smart, 4-port PCI Express boards designed for POS and ATM applications are a top choice of industrial automation engineers and system integrators, and support many different operating systems, including Windows, Linux, and UNIX. In addition, each of the boards’ 4 RS-232/422/485 serial ports supports a fast 921.6 kbps baudrate. The CP-114EL Series provides full modem control signals to ensure compatibility with a wide range of serial peripherals, and their PCI Express x1 classification allows the boards to be installed in any PCI Express slot.



Key Features and Benefits

  • PCI Express 1.0 compliant
  • 921.6 kbps maximum baudrate for fast data transmission
  • 128-byte FIFO and on-chip H/W, S/W flow control
  • Low-profile form factor fits small-sized PCs
  • Drivers provided for a broad selection of operating systems, including Windows, Linux, and UNIX
  • Easy maintenance with built-in LEDs and management software



Click here to download datasheet from MOXA.
