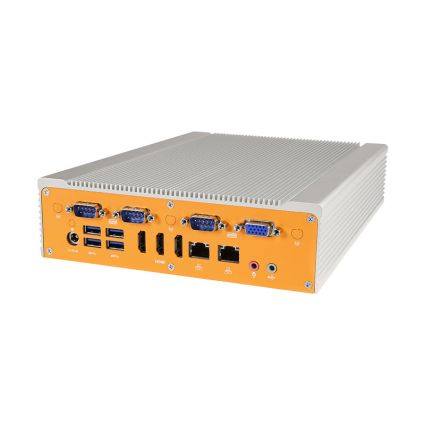

OnLogic Fanless Industrial Intel Skylake Mini-ITX Computer

Part Number: ML450G-51

SKYLAKE POWER AND EFFICIENCY

The ML450G-51 is both highly versatile and extremely efficient, with support for a range of Intel’s 6th generation Skylake processors. Configurable with CPUs ranging from an efficient Celeron, to a highly capable Core i5, the ML450G-51 is designed to tackle any computing task. With improved graphics capabilities and a range of performance boosts, Intel’s Skylake processors give the ML450G-51 a leg up on the competition, making the system ideal for today’s cutting edge embedded projects, manufacturing facilities or any processing intensive application. The ML450G-51 is also available with optional 4G LTE connectivity, enabling remote network access or failover protection.



HARDSHELL FANLESS AT ITS FINEST

Employing our unique Hardshell™ Fanless Technology, the ML450G-51 offers the peace of mind that comes from an all metal, fanless and ventless enclosure designed for the rigors of industrial environments. Internal components are protected from dust, airborne contaminants and even chemical and moisture ingress, as well as shock and vibration, all of which can have devastating effects on sensitive electronics. In addition, thanks to its small size and solid state construction, the ML450G-51 is easy to mount on a wall, under a desk or virtually anywhere you need a highly-capable industrial PC.



MULTIMEDIA & MULTI-LAN CONNECTIVITY

The ML450G-51 fanless industrial PC is designed to be the central hub of today’s smart factory, the backbone for an embedded system or the brains behind the next great automation innovation. With that in mind, the system features a wide variety of connectivity options including 6 USB ports (4 of which are USB 3.0), 3 HDMI ideal for multimedia applications, dual LAN enabling a range of network connectivity options, and comes standard with 3 COM ports and one VGA port. The ML450G-51 will let you interface with new and legacy equipment alike, making it ideal for both new projects or retrofitting into existing IT infrastructure.



SKU ML450G-51
Hardware Line Fanless Industrial
Cooling Type Fanless
Processor Socket LGA1151
Processor Generation Skylake
Chipset Intel Q170
Graphics/GPU Intel HD Graphics 510
Intel HD Graphics 530
(Processor Dependent)
Memory Type DDR4 SO-DIMM (non-ECC)
Memory Capacity 32 GB
Memory Speed 2133 MHz
Memory Slot Count 2.000000
Number of Displays Supported 3
Rear I/O 3 HDMI ports
2 Gb LAN ports
4 USB 3.2 Gen 1 ports
2 RS-232/422/485 COM ports
1 RS-232 COM port
1 VGA port
2 Audio jacks; line-out, mic-in
Front I/O 2 USB 2.0 ports
Power button
Expansion Options 1 Half-height mPCIe slot
Storage Options 1 mSATA (shared with mPCIe)
RAID Support 0
1
LAN Controller Intel I210 GbE
Intel I219LM GbE
System Monitoring PTT in BIOS
Input Voltage 12 VDC
Power Input DC jack
Operating Temperature Range 0 ~ 40°C
Dimensions (WxHxD) 196 x 57 x 270 mm
7.71″ x 2.24″ x 10.6″
Case Type Customizable
Fanless
Modular
Case Material Aluminum
Steel
Port Punchouts 3 Antenna holes
Mounting Options DIN-mount
VESA-mount
Wall-mount
