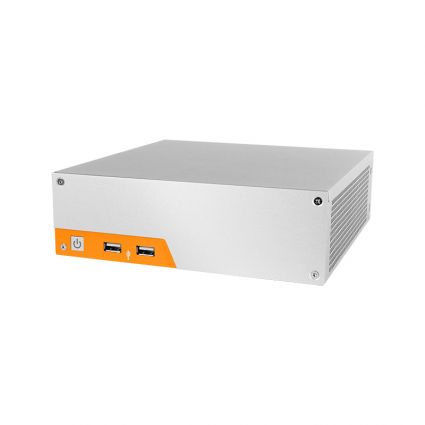

OnLogic Industrial AMD Ryzen Mini-ITX Computer
Part Number: MC510-40
POWERFUL VISUALS
With plenty of onboard cache and fast PCIe Gen 3 lanes, the MC510-40 offers cost-effective performance with the AMD V1605B processor and Radeon™ Vega 8 Graphics featuring four cores, eight threads and the ability to drive four independent displays, making it a perfect solution for digital signage, kiosk, and other display-oriented applications.
FUNCTIONAL AND BEAUTIFUL
A beautifully designed compact all-metal chassis designed for embedded applications makes the MC510-40 both eye-catching and reliable. Double right angle folds reduce EMI and improve EMC performance while cross-case ventilation keeps fan noise low and the system operating 24/7. Optional wall, DIN, and VESA mounting allow secure mounting on virtually any vertical or horizontal surface.
FLEXIBLE CONNECTIVITY
The MC510-40 features extensive I/O and robust onboard expansion. Four DisplayPort connectors enable up to four independent displays in a compact mini-ITX footprint. Wireless options are available via Wi-Fi/Bluetooth while six USB ports (2 USB 3.1, 4 USB 2.0), dual COM (RS-232/422/485), and dual LAN ports provide flexible connectivity for any application.
| SKU | MC510-40 |
|---|---|
| Hardware Line | Fanned Industrial |
| Cooling Type | Actively Cooled |
| Processor | AMD Ryzen™ V1605B |
| Processor Speed | 2.0 GHz |
| Processor Socket | Onboard (BGA) |
| Processor Generation | Zen |
| Processor Cores | 4 |
| Chipset | Shared with CPU |
| Graphics/GPU | AMD Radeon™ Vega 8 Graphics |
| Memory Type | DDR4 SO-DIMM (non-ECC) |
| Memory Capacity | 32 GB |
| Memory Speed | 2666 MHz |
| Memory Slot Count | 2.000000 |
| Number of Displays Supported | 4 |
| Rear I/O | 4 DisplayPort 1.3/DP++ ports 2 Gb LAN ports 2 USB 3.2 Gen 2 ports 2 USB 2.0 ports 2 RS-232/422/485 COM ports |
| Front I/O | 2 USB 2.0 ports 1 Power Button |
| Expansion Options | 1 Full size mPCIe socket |
| Storage Options | M.2 (2260/2280) 2.5″ HDD/SSD |
| LAN Controller | Realtek RTL8111G |
| Input Voltage | 12 VDC |
| Power Input | DC jack |
| Operating Temperature Range | 0 ~ 50°C |
| Dimensions (WxHxD) | 192.6 x 59.3 x 199.6 mm 7.6″ x 2.35″ x 7.86″ |
| Case Type | Compact |
| Case Material | Aluminum Steel |
| Port Punchouts | 3 Antenna holes |
| Mounting Options | DIN-mount VESA-mount Wall-mount |
