OnLogic Cincoze Rugged Intel 9th/8th Gen GPU Computer
Part Number: GM-1000
POWERFUL COMPUTING
Based on the Intel™ Coffee Lake-R platform, the Cincoze GM-1000 can be configured with 9th or 8th generation CPUs with up to 8 cores, along with up to 64 GB of DDR4 memory. The system features an MXM 3.1 Type A/B GPU module slot, allowing you to equip an Nvidia Quadro P2000 or AMD Radeon E9174 GPU to enable parallel GPU processing in a wide range of vision computing applications.
WHEREVER YOU NEED IT

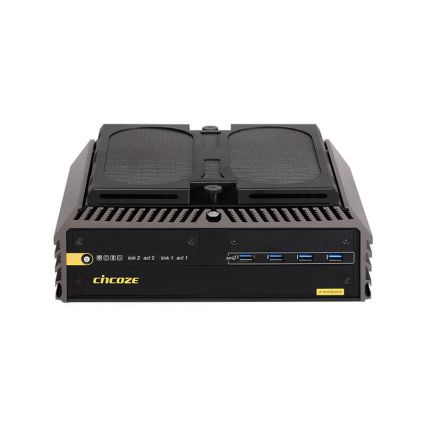

Designed to be used in environments that would damage or destroy traditional computing hardware, the GM-1000 features industrial grade components, copper heat pipes, a special aluminum extrusion enclosure, and a low power external fan which is used to cool the graphics card. Its thermal design provides effective heat dissipation at ambient operating temperatures of -40°C – 55°C when configured with a graphics card. The GM-1000 has vibration and impact force tolerances of 5G and 50G respectively and has been certified to EN62368-1 safety and EN 50121-3-2 railway standards.
CUSTOMIZABLE CONNECTIVITY
In addition to a well-populated assortment of standard I/O, the GM-1000 can be customized with additional functionality and connectivity through Cincoze’s innovative CMI / CFM (Combined Multiple IO / Control Function Module) technology. GM-1000 can be configured with PoE or ignition sensing, as well as additional 10GbE LAN, RJ45 GbE LAN, M12 GbE LAN, COM and DIO.
CELLULAR CONNECTIVITY
This system is compatible with our Extrovert 4G LTE technology, an integrated modem pre-certified to operate on many of the world’s most popular cellular carrier networks. Extrovert 4G LTE hardware is ideal for today’s mobile, edge computing and Industrial Internet of Things applications. To take advantage of this feature, simply configure your system with Extrovert 4G LTE connectivity and then contact your carrier to activate.
| SKU | GM-1000 |
|---|---|
| Hardware Line | Rugged |
| Cooling Type | Fanless |
| Processor Generation | Coffee Lake |
| Processor Cores | 4 6 8 |
| Chipset | Intel C246 |
| Graphics/GPU | Intel UHD Graphics 610 Intel UHD Graphics 630 |
| Memory Type | DDR4 SO-DIMM (non-ECC) |
| Memory Capacity | 64 GB |
| Memory Speed | 2400 MHz 2666 MHz |
| Memory Slot Count | 2.000000 |
| Number of Displays Supported | 1 |
| Rear I/O | 4 USB 3.2 Gen1 1 HDMI 1 DisplayPort 1 DVI-I Connector 2 GbE LAN Ports 4 RS-232/422/485 Ports with Auto Flow Control 1 AT/ATX Mode Switch 2 Antenna Holes 2 External Fan Connectors, 4-pin Terminal Block 1 Remote Power On/Off Connector, 2-pin Terminal Block 2 3-pin Terminal Block Input (9~23V Dual Power, 24~48V Single Power) 1 Audio jack (Line-Out; Mic-In) |
| Front I/O | 4 USB 3.2 Gen2 2 Universal I/O Expansion 2 2.5” Hot Swap HDD/SSD Bay 1 Power Button |
| Expansion Options | 1 M.2 2230 slot |
| Storage Options | 2 SATA III 2.5″ Drives 3 mSATA slots (Shared by mPCIe) |
| RAID Support | 0 1 10 5 |
| LAN Controller | Intel I210IT GbE Intel I219LM GbE |
| System Monitoring | Watchdog Timer |
| Input Voltage | 9~48 VDC |
| Power Input | 2 3-pin Terminal Block connectors |
| Operating Temperature Range | -40 ~ 70°C |
| Operating Humidity | 10% – 95% (non-condensing) |
| Shock Tolerance (Operating) | 50 Grms, Half-sine 11 ms Duration * w/ SSD, according to IEC60068-2-27 |
| Vibration Tolerance (Operating) | 5 Grms, 5-500 Hz, 3 Axes * w/ SSD, according to IEC60068-2-64 |
| Dimensions (WxHxD) | 260 x 200 x 85 mm |
| Case Type | Fanless Ruggedized |
| Case Material | Aluminum Extrusion |
| Mounting Options | DIN-mount VESA-mount Wall-mount |
