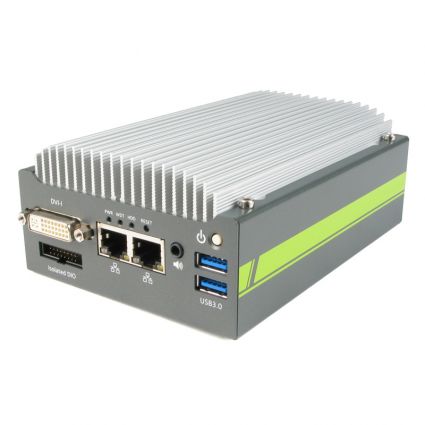

OnLogic Neousys Rugged Compact Fanless Intel Bay Trail Computer
Part Number: POC-200
ENERGY EFFICIENCY TO THE MAX
With Bay Trail Quad-Core processing power, the POC-200 offers high performance computing in an energy sipping package. Configured with up to 8GB of Memory and solid state storage, the POC-200 excels at tasks that other computers of its size struggle to contend with.
SUPER RUGGED, SUPER FLEXIBLE
The small footprint, wide-temp, fanless case of the POC-200 makes it easy to install or integrate in virtually any environment. Even with its impressive feature set, function does not sacrifice form, with the attractive case being equally well-suited on a desktop or in a fully embedded application. No fans also mean high reliability, eliminating the risk of hardware failure due to clogged or faulty active cooling solutions.
EXPAND YOUR HORIZONS
When you need to grow your hardware infrastructure or interface with other devices, the POC-200 has you covered. The system features 4 COM ports, DIO, dual Gb LAN and 4 USB ports, as well as a DVI-I connector, allowing for easy connectivity to any monitor. The Neousys POC-200 is small enough to be seamlessly integrated into surveillance cameras.
| SKU | POC-200 |
|---|---|
| Hardware Line | Rugged |
| Cooling Type | Fanless |
| Processor | Intel Atom E3845 |
| Processor Speed | 1.91 GHz |
| Processor Socket | Onboard (BGA) |
| Processor Generation | Bay Trail |
| Processor Cores | 4 |
| Chipset | Shared with CPU |
| Graphics/GPU | Intel HD Graphics |
| Memory Type | DDR3L SO-DIMM (non-ECC) |
| Memory Capacity | 8 GB |
| Memory Speed | 1066 MHz |
| Number of Displays Supported | 1 |
| Rear I/O | 1 USB 3.0 1 USB 2.0 port 2 RS-232/422/485 COM port 2 RS-232 COM port 2 Antenna holes 1 DIO/GPIO port 1 8~35 V secure DC input |
| Front I/O | 2 USB 3.0 ports 1 DVI-I connector 2 Gigabit Ethernet ports on POC-210 (2 25 W PoE ports on POC-200) 1 Audio jack |
| Expansion Options | 1 PCIe Mini Card (full height) |
| Storage Options | 2.5″ HDD/SSD |
| LAN Controller | Intel I210 GbE |
| Input Voltage | 8~35 VDC |
| Power Input | 2-pin Terminal Block connector |
| Operating Temperature Range | -25 ~ 70°C |
| Operating Humidity | 0% ~ 90% |
| Shock Tolerance (Operating) | 50 Grms, Half-sine 11 ms Duration |
| Vibration Tolerance (Operating) | 5 Grms, 5-500 Hz, 3 Axes |
| Dimensions (WxHxD) | 105 x 57 x 149 mm 4.13″ x 2.28″ x 5.9″ |
| Case Type | Compact Fanless |
| Case Material | Aluminum Steel |
| Port Punchouts | 2 Antenna holes |
| Mounting Options | Wall-mount |
| Included Accessories | DVI to VGA Adapter |
