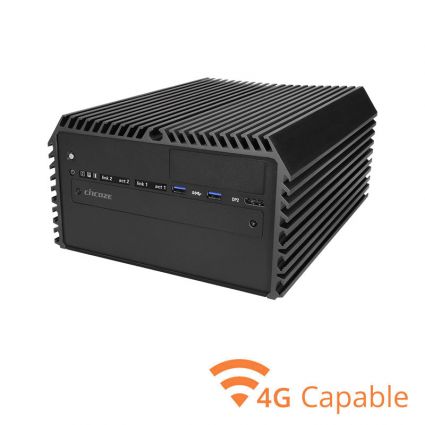

OnLogic Cincoze Rugged Intel Skylake Fanless Computer with Dual Expansion
Part Number: DS-1102
BOLD AND POWERFUL
No task is too big for this powerful PC, which packs Intel Skylake desktop performance in a compact rugged enclosure. The DS-1102 accommodates up to a quad-core i7 that, along with the superior performance and efficiency of Skylake, brings with it support for up to 64 GB of DDR4 RAM. The Q170 chipset provides support for advanced technology such as vPro and virtualization. Optional 4G LTE connectivity enables remote network access for in-vehicle installations or failover protection.
RESILIENT DESIGN
Designed to operate in the harshest industrial settings where typical commercial systems would fail, the DS-1102 can perform in any environment that requires high-performance computing. Encased in a rugged, fanless, ventless, and cableless enclosure, the DS-1102 can withstand anything from dirt, dust, shock and vibration. With a temperature range of -40°C to 70°C long-lasting reliability is ensured even in the most extreme environments.
SUPERIOR I/O
I/O array is just one of the many areas where the DS-1102 shines, equipped with 8 USB ports (including 6 USB 3.0 ports), in conjunction with two DisplayPort connectors and DVI-I which allows triple HD displays. Industrially focused, the series comes equipped with two Gbe LAN ports and two RS-232/422/485 COM ports for connectivity to a wide range of peripherals and equipment while a 2.5” hot-swap HDD bay and SIM card slot provide additional storage capacity. This series offers an incredible array of expansion possibilities depending on the model selected, including additional COM, DIO, LAN, PoE, and USB as well as riser card options for PCI, PCIe x1, PCIe x8, and PCIe x16.
CELLULAR CONNECTIVITY
This system is compatible with OnLogic’s Extrovert 4G LTE technology, an integrated modem pre-certified to operate on many of the world’s most popular cellular carrier networks. Extrovert 4G LTE hardware is ideal for today’s mobile, edge computing and Industrial Internet of Things applications. To take advantage of this feature, simply configure your system with Extrovert 4G LTE connectivity and then contact your carrier to activate.
| SKU | DS-1102 |
|---|---|
| Hardware Line | Rugged |
| Cooling Type | Fanless |
| Processor Socket | LGA1151 |
| Processor Generation | Skylake |
| Chipset | Intel Q170 |
| Graphics/GPU | Intel HD Graphics (CPU dependent) |
| Memory Type | DDR4 SO-DIMM (non-ECC) |
| Memory Capacity | 64 GB |
| Memory Speed | 2133 MHz |
| Memory Slot Count | 2.000000 |
| Number of Displays Supported | 3 |
| Rear I/O | 4 USB 3.0 ports 2 USB 2.0 ports 2 RS-232/422/485 COM ports 2 Gb LAN ports 1 DisplayPort 1 DVI-I port 1 PS/2 port for mouse/keyboard 2 Audio jacks; Line-in, Mic-out 1 9~48 V terminal block power connector 1 Remote switch connector 2 Antenna jacks 1 External fan connector 1 Ground pin |
| Front I/O | 2 USB 3.0 ports 1 DisplayPort 1 2.5″ Hot-swap HDD bay 1 SIM Card slot 1 Removable CMOS battery 1 AT/ATX power On/Off switch Power button |
| Expansion Options | 1 PCI slot (optional riser card) 1 PCIe x1 slot (optional riser card) 1 PCIe x16 slot (optional riser card) 1 PCIe x8 slot (optional riser card) 2 PCIe Mini Card slots (full height) 1 SIM Card socket |
| Storage Options | 2.5″ HDD/SSD 2.5″ Hot-swap HDD/SSD SATA 6 Gb/s 2 mSATA (shared PCIe Mini Card slot) |
| RAID Support | 0/1 |
| LAN Controller | Intel I210AT GbE Intel I219LM GbE |
| System Monitoring | Wake on USB Watchdog Timer |
| Input Voltage | 9~48 VDC |
| Power Input | 3-pin Terminal Block connector |
| Operating Temperature Range | -40 ~ 70°C |
| Operating Humidity | 10% – 95% (non-condensing) |
| Dimensions (WxHxD) | 227 x 128 x 261 mm 8.94″ x 5.04″ x 10.28″ |
| Case Type | Fanless Ruggedized |
| Case Material | Aluminum Steel |
| Port Punchouts | 2 Antenna holes |
| Mounting Options | Wall-mount |
