IBM SYSTEM P5 520 4U SERVER

Part no: 9131-52A | NSN: 7035-01-553-7372

IBM SYSTEM P5 520 4U SERVER

Call for Details | Why Can't I See a Price?

Touchpoint can assist with new and refurbished equipment in most cases.

Request a Quote

  • We are a B2B sales organisation & do not sell to individual consumers.
  • We are located in Australia and in most cases will not be able to sell outside AU/NZ
  • This field is hidden when viewing the form
  • This field is hidden when viewing the form
  • This field is hidden when viewing the form

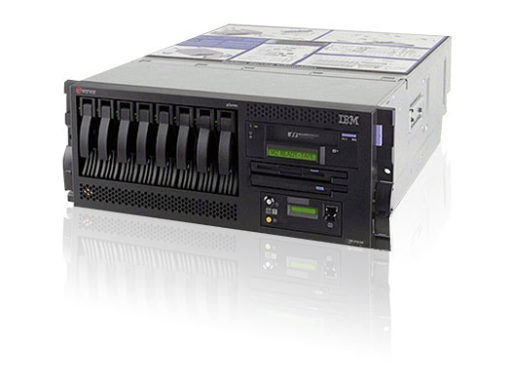

IBM SYSTEM P5 520 52A LARGE FORM FACTOR 4RU SERVER

Part Number: 9131-52A

The IBM p5-520 server Model 52A gives you tools for servers managing business, greater application flexibility and innovative technology — all designed to help you become an On Demand Business.

The System p5 520 is a follow-on to the highly successful IBM OpenPower 720 and the IBM p5 520. The p5-520 is available in a 1-core configuration using a 1.65 GHz POWER5+ processor with no L3 cache, a 1-core configuration using a 2.1 POWER5+ processor with a 36 MB cache, or a 2-core configuration using either a 1.65, 1.9 or 2.1 GHz POWER5+ processor, all with a 36 MB L3 cache.

The base 1 GB of main memory can be expanded to 32 GB for faster performance and exploitation of 64-bit addressing as used in large database applications.

Key Features

  • Two 10/100/1000 Ethernet ports on a single controller
  • Can utilise 1.65 (SCM and DCM), 1.9 or 2.1 GHz (DCM), and 1.5 or 1.65 GHz (QCM) POWER5+
    processors.
  • From 1 GB to 32 GB of total system memory capacity using 533 MHz DDR2 DIMM
    technology.
  • Two system ports
  • Two USB 2.0 ports on a single controller
    Optionally, an external USB diskette drive 1.44 (FC 2591) is available.
  • Two HMC ports
    Optional GX+ Bus to RIO-2 adapter card (FC 2888)
  • Two SPCN ports
  • one internal Ultra320 SCSI dual channel controller

Click here for more information from IBM
