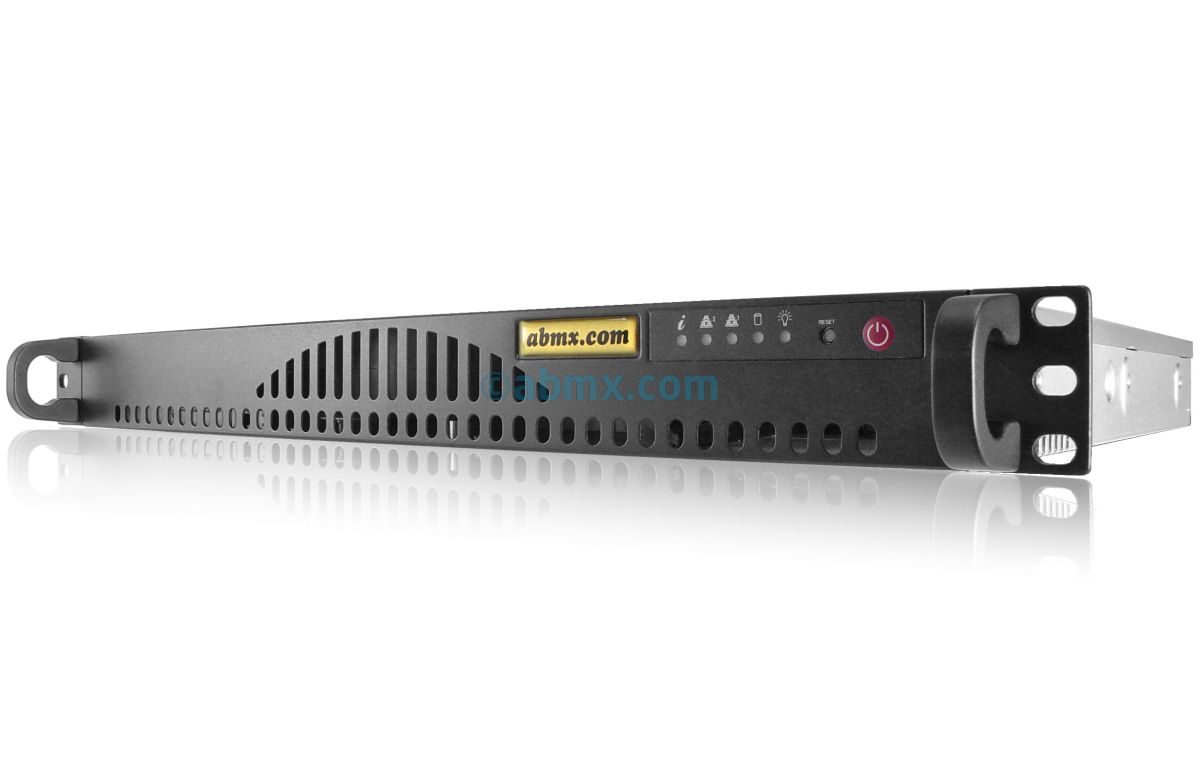

ABMX 114S9 1U Short-Depth Server

Part Number: 114S9

Introducing the most popular ABMX server. The socket 1155 Sandy / Ivy Bridge iteration of the versatile “pizza box” mini-system format. This 1U Mini-Server is a cost-effective middle ground for simple to advanced level projects that require, at most, 32GB of DDR3 ECC Unbuffered RAM. From simple appliance to full-scale datacenter environments, this server can do it all!

Chassis
  • 14″ Mini Rack Mountable Enclosure
  • 1 Rack Unit Height (1.7″)
  • Dimensions: 14″ (D) x 19″ (W) x 1.7″ (H)
  • Metal thickness: 1.2 mm
  • 1U Chassis Mounting Rails and Kit (OPTIONAL)
Processor/Chipset
  • Socket H2 (LGA 1155)
  • Single Intel® Xeon E3-1200 series, 2nd generation Intel Core® i3, Pentium®, Celeron® processor
  • Intel® C202/204 PCH chipset
BIOS
  • 32Mb SPI Flash EEPROM with AMI BIOS
Memory
  • 4 x 240-pin DDR3 DIMM sockets
  • Supports up to 32GB DDR3 ECC Un-Buffered memory (UDIMM)1333/1066MHz
Storage / IPMI
  • 6 x SATA2 (3Gbps), OR
  • 4 x SATA2 (3Gbps) + 2 x SATA3 (6Gbps)
  • Chassis supports up to two hard drives
  • Support for IPMI 2.0 with virtual media over LAN and KVM-over-LAN, Nuvoton WPCM450 BMC (OPTIONAL)
Drive Bays
  • HD1-2 Bay: fixed Hard Drive
  • Up to 8 Terabyte of storage can be supported
I/O ports
  • 2 x RJ45 port
  • 9 x USB 2.0 ports (2 x rear + 6 x via header + 1 x type A)
  • 2 x Fast UART 16550 serial port (1 x header and 1 x rear port)
  • 1 x VGA
  • PS/2 Keyboard port
  • PS/2 Mouse port
Video
  • On board Nuvoton WPCM150GA0BX
Network
  • 2 x Gigabit LAN Ports (Intel® 82579LM and 82574L)
  • Virtual Machine Device Queues High efficient I/O overhead
  • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
Hardware Monitor
  • Operating Temperature Range 5°C – 35°C (41°F – 95°F)
  • System Voltage Vcore,+3.3V,+5V,+12V
Expansion
  • 1 x (x8) PCI-E 2.0 slot via PCI-E riser card (Riser card is OPTIONAL)
Power Consumption/Acoustic noise emission
  • Between 34W to 56W with the standard configuration
  • Noise level (during normal operation): ~54 dBA (ISO 7779 operator position 0.6 meter) With noise reduction < dBA *depends on CPU
Power Supply
  • Thermal control 200/260W AC power supply with PFC
  • 24-pin, 4-pin=12V, (2) 4-pin
  • 100 – 240V, 60-50Hz, 4 Amp Max
  • Tested to comply with FCC Standards
  • Certifications: UL, CUL, TUV, CE, EN, EC, CCC
Floppy Drive
  • Not supported
CD-ROM /DVD-ROM
  • External USB Optical Drive (OPTIONAL)
Rack Support
  • 1U Chassis Mounting Rails and Kit (OPTIONAL)
OS Compatibility
  • Linux Ent V3 (update 6, update 7/64bit)
  • Linux Ent V3 (update 8, update 8/64bit)
  • Linux Ent V4 (update 3, update 3/64bit)
  • Linux Ent V4 (update 4, update 4/64bit)
  • Redhat Linux 9.0 (kernel 2.4.20-6 /2.4.20-8)
  • Windows XP/2003/7/2008/2008 R2
