Part no: AC1000SC

Alloy 10/100/1000Base-T to 1000Base-SX Multimode 1310nm (SC) Converter. 220m or 550m

Name: Alloy 10/100/1000Base-T to 1000Base-SX Multimode 1310nm (SC) Converter. 220m or 550m
SKU: AC1000SC
Availability: InStock

Call for Details | Why Can't I See a Price?

Touchpoint can assist with new and refurbished equipment in most cases.

Request a Quote

Name*
Email*
Phone*
Company*
We are a B2B sales organisation & do not sell to individual consumers.
Delivery Location
We are located in Australia and in most cases will not be able to sell outside AU/NZ
This field is hidden when viewing the form
Product
This field is hidden when viewing the form
Desired Quantity
How quickly do you need this quote?
- 1hr
- 4hrs
- 24hrs
- 48hrs
This field is hidden when viewing the form
Order Details
Order Details*
Receive latest updates and offers from Touchpoint

Product Information

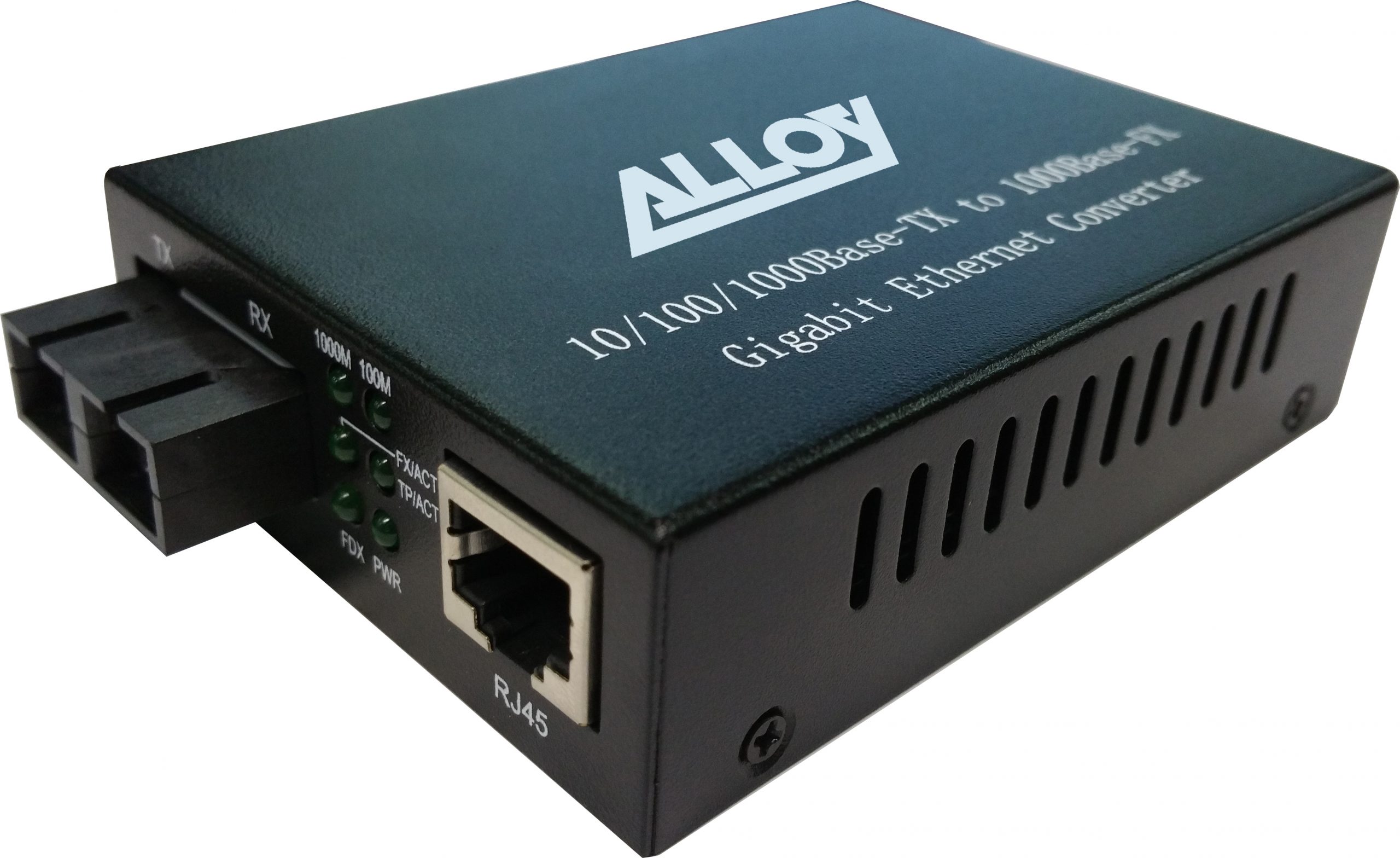

Alloy 10/100/1000Base-T to 1000Base-SX Multimode 1310nm (SC) Converter. 220m or 550m

Part Number: AC1000SC

Features :
• Ethernet RJ-45 to multimode fibre
• auto-configuring speed/duplex mode
• Rugged, compact all metal case
• 3 Year Warranty

Specifications :

Speed
• TX: 10/100/1000Mbps
• FX: 1000Mbps
Connector Types
• TX: RJ-45
• FX: SC
Max Range
• TX: 100m
• FX: 2Km
Duplex
• TX/FX: Full
Flow Control
• Full Duplex: 802.3x
Wavelength
• MM: 1310nm
Diagnostic LEDs
• PWR, FX Link, TP Link 1000, TP Link 100, TP ACT
Power and Install
• Standalone: Plugpack
Power Requirement
• 1A @ +5VDC
Temperature / Humidity
• -10°C – 55°C
• 5% – 90%
Dimensions / Weight
• 26(H) x 70(W) x 94(D) mm
• 225 grams
