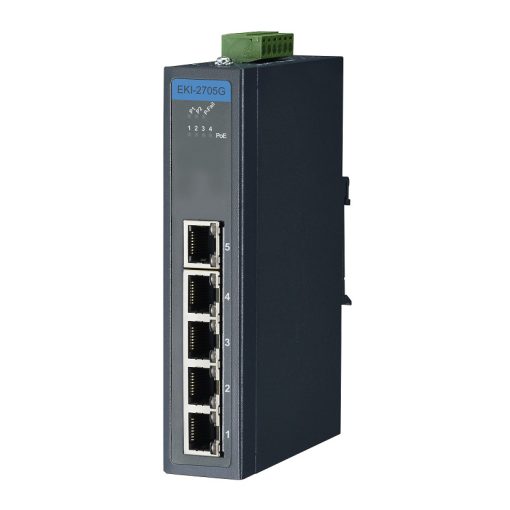

Advantech EKI-2705G-1GPI 4GE PoE+1GE, Unmanaged Ethernet Switch, IEEE802.3af/at, 24~48VDC, -40~75℃

Part no: EKI-2705G-1GPI-AU

Advantech EKI-2705G-1GPI 4GE PoE+1GE, Unmanaged Ethernet Switch, IEEE802.3af/at, 24~48VDC, -40~75℃

Call for Details | Why Can't I See a Price?

Touchpoint can assist with new and refurbished equipment in most cases.

Request a Quote

  • We are a B2B sales organisation & do not sell to individual consumers.
  • We are located in Australia and in most cases will not be able to sell outside AU/NZ
  • This field is hidden when viewing the form
  • This field is hidden when viewing the form
  • This field is hidden when viewing the form

Advantech EKI-2705G-1GPI 4GE PoE+1GE, Unmanaged Ethernet Switch, IEEE802.3af/at, 24~48VDC, -40~75℃

Part Number: EKI-2705G-1GPI-AU



The EKI-2705 series supports 24 ~ 48VDC redundant power input and is secured with a double protection mechanism: power polarity reverse protection and an overload current fuse. The EKI-2705 series supports up to 4-port IEEE 802.3 af/at PoE /PoE+ ports.



Key Features

  • Supports 10/100/1000 Mbps Auto Negotiation
  • Supports jumbo frame transmission up to 9 kbytes
  • DIN-rail with IP30 metal mechanism
  • Redundant 24~48 VDC power input(BE Version)
  • 4 x IEEE 802.3 af/at PoE ports + 1 x Gigabit Copper



Click here to download datasheet from Advantech.
