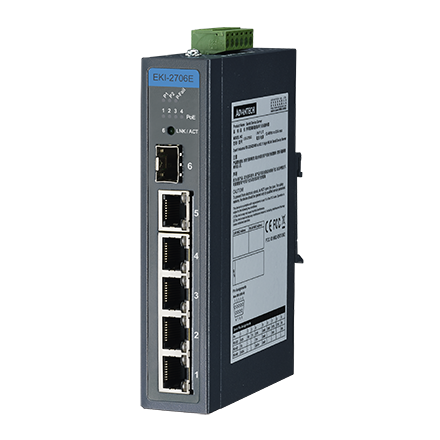

Advantech EKI-2706E-1GFPI 4FE PoE+1G+1G SFP, Unmanaged Ethernet Switch, IEEE802.3af/at, 24~48VDC, -40~75℃

Part no: EKI-2706E-1GFPI-BE

Advantech EKI-2706E-1GFPI 4FE PoE+1G+1G SFP, Unmanaged Ethernet Switch, IEEE802.3af/at, 24~48VDC, -40~75℃

Call for Details | Why Can't I See a Price?

Touchpoint can assist with new and refurbished equipment in most cases.

Request a Quote

  • We are a B2B sales organisation & do not sell to individual consumers.
  • We are located in Australia and in most cases will not be able to sell outside AU/NZ
  • This field is hidden when viewing the form
  • This field is hidden when viewing the form
  • This field is hidden when viewing the form

Advantech EKI-2706E-1GFPI 4FE PoE+1G+1G SFP, Unmanaged Ethernet Switch, IEEE802.3af/at, 24~48VDC, -40~75℃

Part Number: EKI-2706E-1GFPI-BE



The EKI-2706 Series has 24VDC redundant power input and double protection: Power Polarity Reverse Protect and Overload Current Fuse. It has up to 4 IEEE 802.3 af/at PoE/PoE+ ports and a relay output for event alarms. It has an IP30 rating for dusty environments.



Key Features

  • Supports 10/100/1000 Mbps Auto Negotiation (EKI-2706G)
  • Supports jumbo frame transmission up to 9 kbytes
  • DIN-rail with IP30 metal mechanism
  • Redundant 24~28 VDC power input
  • 4 x IEEE 802.3 af/at PoE ports + 1 x Gigabit Copper + 1 Gigabit SFP ports



Click here to download datasheet from Advantech.
