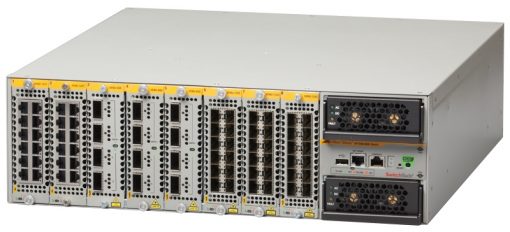

Allied Telesis SwitchBlade® x908 Generation 2 Layer 3+ Switch
Part Number: AT-SBX908
Overview
The SBx908 GEN2 delivers a future-proof network with superior flexibility, and integrated wireless LAN management.
The high-capacity 2.6 Terabit fabric eliminates bottlenecks, effortlessly streams video and ensures all traffic in large networks is delivered reliably. Flexible hot-swappable expansion modules (XEMs) support multi-speed (1/2.5/5/10G), 10 Gigabit, 40 Gigabit, and 100 Gigabit to easily expand the SBx908 GEN2 to meet network traffic demands, both now and well into the future.
Performance
- 2.6 Terabit Switching Fabric
- 1,905Mpps forwarding rate
- Extensive wirespeed traffic classification for ACLs and QoS
- Supports 10KB Jumbo frame size for data center and server aggregation applications
- Wirespeed multicasting
- 96K MAC address entries
- Up to 96K host entries
- Up to 32K multicast entries
- Up to 128 Link Aggregation Groups (LAGS) – any combination of static and dynamic (LACP)
- 4K VLANs
- 4GB DDR SDRAM
- 16MB packet buffer memory
- 4GB Flash Memory
