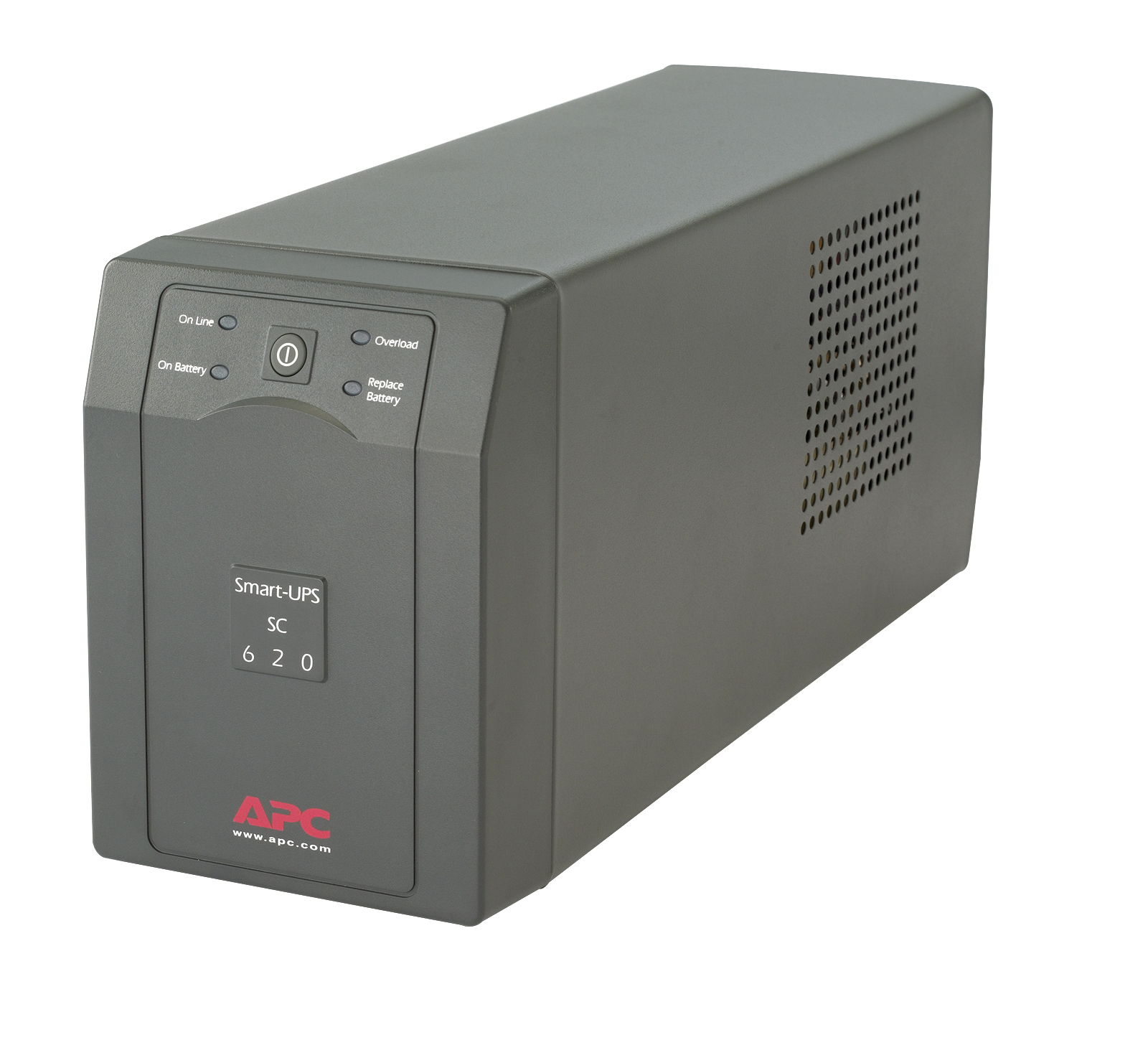

APC Smart-UPS SC Tower - 120V, 620VA, 390-Watt, 4-Outlet SC620

Part no: SC620

APC Smart-UPS SC Tower – 120V, 620VA, 390-Watt, 4-Outlet SC620

Call for Details | Why Can't I See a Price?

Touchpoint can assist with new and refurbished equipment in most cases.

Request a Quote

  • We are a B2B sales organisation & do not sell to individual consumers.
  • We are located in Australia and in most cases will not be able to sell outside AU/NZ
  • This field is hidden when viewing the form
  • This field is hidden when viewing the form
  • This field is hidden when viewing the form

APC Smart-UPS SC Tower – 120V, 620VA, 390-Watt, 4-Outlet

Part Number: SC620



  • Prevents surges and blackouts from reaching your valuable equipment.
  • Has four NEMA 5-15R receptacles for plugging in devices.
  • Also guards against power surges on equipment connected to data lines.
  • Features RS-232 serial management port. Network manageable with the included PowerChute software.
  • Restarts loads automatically after UPS shutdown and is cold-start capable.
  • Intelligent battery management maximizes battery performance.
  • Batteries are easy to replace and hot swappable.



General
Audible Alarm Alarm when operating on battery, distinctive low battery alarm, overload continuous tone alarm
Backup Time (Typical) At half-load: 15.7 minutes (195 W); At full load: 5.5 minutes (390 W)
Battery Recharge Time (Typical) 5 hours
Battery Type Leakproof, maintenance-free sealed lead-acid battery with suspended electrolyte
CE Approval Yes
Compliance CSA; FCC Part 15 Class A; UL® 1778
Output Configurable Power (Maximum) 390 W/620 VA
Output Power 390 W/620 VA
Output Power Crest Factor Up to 5:1
Output Power Frequency (Sync to AC Power) 47-53 Hz for 50 Hz (nominal), 57-63 Hz for 60 Hz (nominal)
Output Power Voltage Distortion Less than 5% at full load
Output Power Voltage (Nominal) 120 V
Output Receptacles (4) NEMA 5-15R
Power Input: 120 VAC, 50/60 Hz +/- 3 Hz (autosensing); Input voltage range for AC power operations: 82-144 V; Input voltage adjustable range for AC power operation: 75-154 V
Runtime 3 hours, 3 minutes (at 25 W, 40 VA); At half load: 16 minutes (195 W); At full load: 5 minutes (390 W)
Surge Energy Rating 412 joules
Surge Filtering Full time multi-pole noise filtering; 0.7% IEEE surge let-through; zero clamping response time; meets UL® 1449
