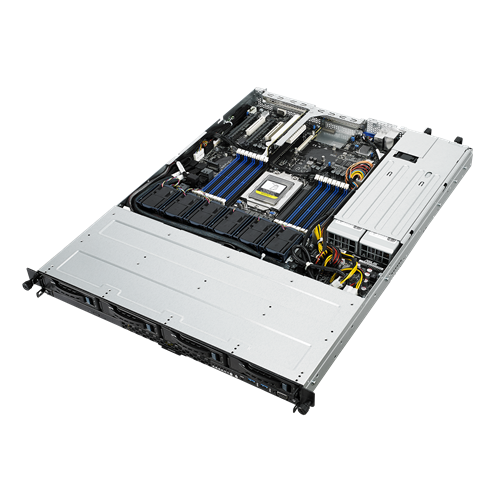

Asus Rack-optimized 1U AMD EPYC server

Part Number: RS500A-E9-RS4



RS500A-E9-RS4 is built on AMD EPYC™ platform to deliver incredible server performance. With up to 32 cores per CPU and up to 64 threads, RS500A-E9-RS4 packs incredible power in minimal space. 16 DIMM slots provide best-in-class memory capacity and bandwidth, and an integrated I/O controller on the processor

RS500A-E9-RS4 features one PCIe x16 and one PCIe x8 slots to deliver parallel computing power and one OCP 2.0 Mezzanine connector to support high-speed LAN card. This flexibility supports diverse storage and networking applications and ensures future expandability and high scalability in a 1U server.

RS500-E9-RS4 fits four 3.5-inch hot-swappable 12Gbps SAS or 6Gbps SATA drives. One M.2 slot accommodate 22110-size SSDs with support for additional OS storage and PCIe Gen3 x4 bandwidth — 5.3X faster than 6 Gb/s SATA III — for faster boot speeds.



  • Powered by the AMD EPYC™ 7000 processors
  • 180W CPU with 16 DIMM support
  • High power-efficiency with redundant 770W 80 Plus Platinum power supply
  • Designed for flexible storage with four SAS or SATA drives
  • Ultrafast connectivity with OCP 2.0 Mezzanine card support
  • One M.2 slot accommodate 22110-size SSDs for faster boot speed
  • Exclusive Thermal Radar energy-efficiency technology reduces fan power consumption by up to 20%
  • Easy maintenance and debugging with internal USB 3.0 port and microSD card support for easier access
  • Complete IT infrastructure management with ASMB9 out-of-band remote management and in-band ASUS Control Center
