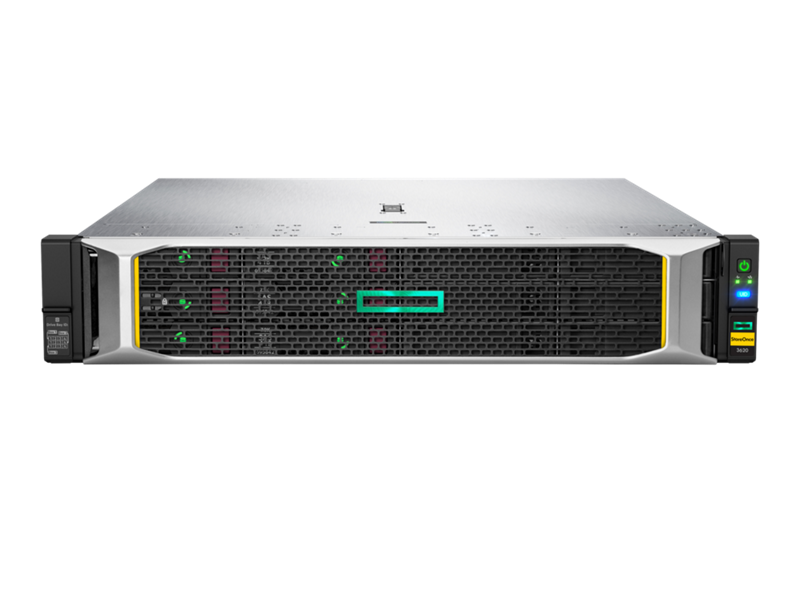

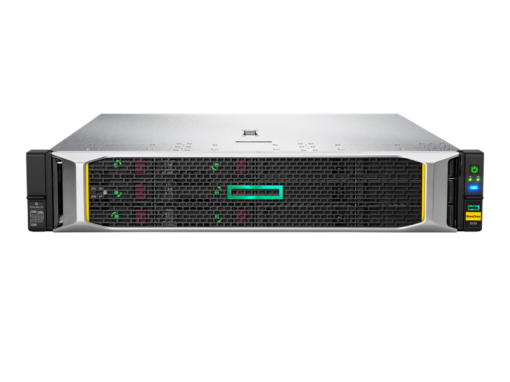

HPE StoreOnce 5200 Base System
Part Number: BB956A
Virtual Appliance No
Drive Description 12 x 4 TB LFF SAS
Storage Capacity 48 TB raw, 36 TB useable (base plus first upgrade kit) expandable to 216 TB useable
Data Transfer Rate 33 TB/hr, maximum using HPE StoreOnce Catalyst
Deduplication Type HPE StoreOnce deduplication
Storage Expansion HPE StoreOnce 5200 48 TB capacity upgrade kit
Host Interface 1 Gb Ethernet standard, 10GbE SFP, 10GbE-T, 16 Gb FC or 32 Gb FC optional can be added in any configuration up to maximum quantity of four
Raid Support Hardware RAID 6
Replication Features Yes – HPE StoreOnce Replication and Catalyst Copy
Target for Backup Applications HPE StoreOnce Catalyst, Virtual Tape Library (iSCSI, FC), and NAS (CIFS, NFS)
Tape Device Emulated HPE LTO-2/LTO-3/LTO-4/LTO-5/LTO-6/LTO-7 Ultrium Tape Drives in MSL2024 Tape Library, MSL4048 Tape Library, HPE D2D generic library with HPE D2D generic tape library
Number of Virtual Tape Libraries and NAS Targets 64
Tape Cartridges Emulated (maximum) 16,384
Source Appliances (maximum) 32
Form Factor 4U up to 14U
Warranty Standard Statement 3-year parts, 3-year labor, 3-year onsite support coverage. For more warranty information refer to http://h20564.www2.hpe.com/hpsc/wc/public/home.
Detailed Product Description HPE StoreOnce 5200 Base System with 48TB raw capacity
Weight (imperial) 102 lbs
Weight (metric) 46.2 kg
Product Dimensions (imperial) 6.88 x 17.64 x 26.75 in
Product Dimensions (metric) 17.46 x 44.8 x 67.94 cm
