Black Box 10/100/1000BASE-T RJ45 POE+ Gigabit Ethernet Injector - 802.3at, 16-Port LPJ016A-T-R2

Part no: LPJ016A-T-R2

Black Box 10/100/1000BASE-T RJ45 POE+ Gigabit Ethernet Injector – 802.3at, 16-Port LPJ016A-T-R2

Call for Details | Why Can't I See a Price?

Touchpoint can assist with new and refurbished equipment in most cases.

Request a Quote

  • We are a B2B sales organisation & do not sell to individual consumers.
  • We are located in Australia and in most cases will not be able to sell outside AU/NZ
  • This field is hidden when viewing the form
  • This field is hidden when viewing the form
  • This field is hidden when viewing the form

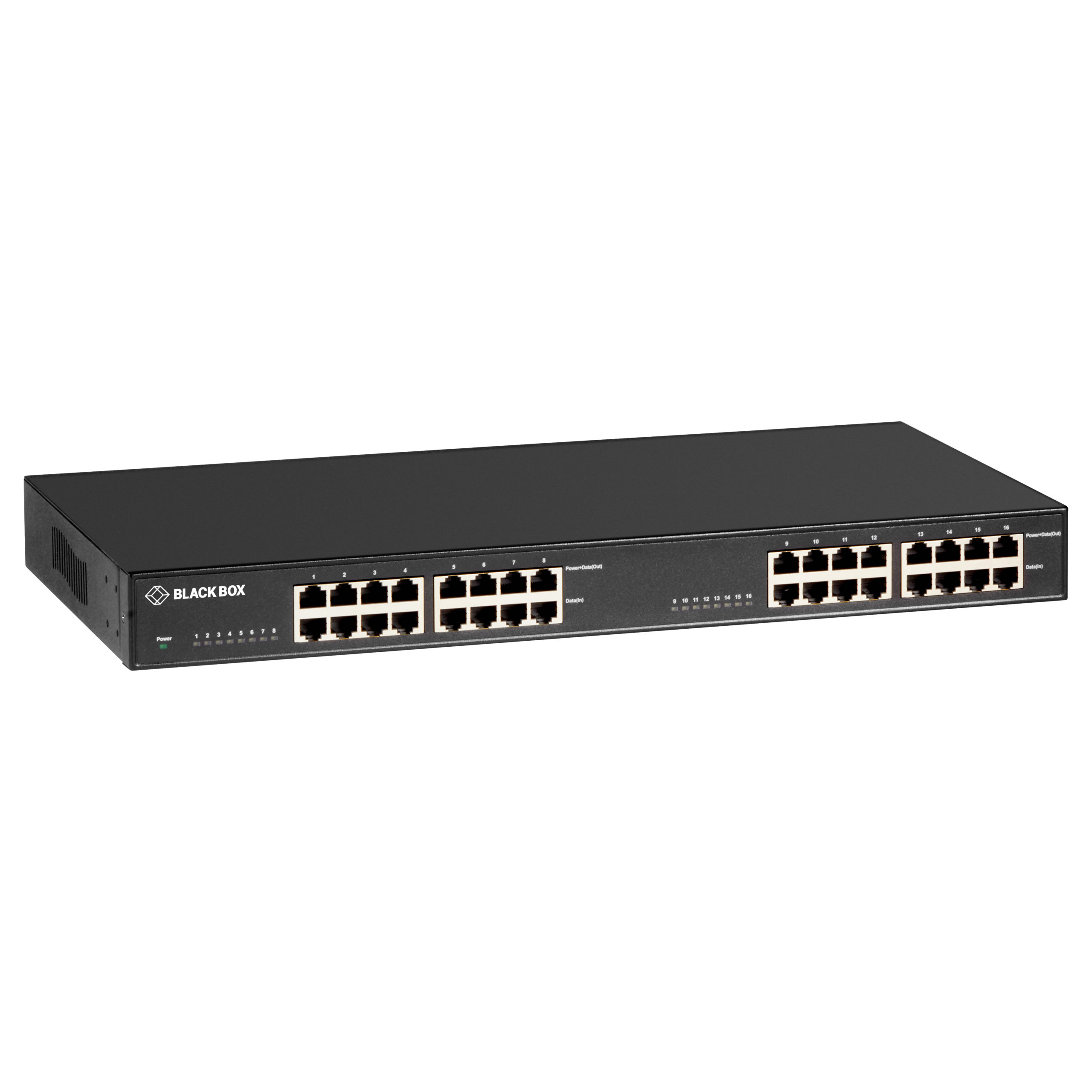

Black Box 10/100/1000BASE-T RJ45 POE+ Gigabit Ethernet Injector – 802.3at, 16-Port

Part Number: LPJ016A-T-R2



  • Midspan injector that’s 802.3at compatible for powered devices.
  • Provides 30W of safe Power over Ethernet (PoE) Plus power to each device.
  • Supports Gigabit Ethernet data connections for high-speed equipment.
  • Provides overvoltage and overcurrent overload protection as well as short circuit protection on the power output (per 802.3at specifications).
  • Overtemperature protection. Shuts down automatically without being damaged.



General
Speed 10/100/1000-Mbps
Approvals CE, RoHS, cUL/UL®
Humidity 5 to 90%
Load Capacity LPJ001A-T, LPJ001A-T-R2: 30W
LPJ008A-T-R2: 250W
LPJ016A-T-R2: 500W
Operating temperature 14°F to 104°F (-10°C to +40°C)
Power AC input voltage range: 90-264 VAC; AC input voltage rating: 100-240 VAC, 47-63 Hz
Regulation Line & load: 54-57 VDC under all conditions
Storage temperature -4°F to 158°F (-20°C to +70°C)
Item Specifications
Connectors Data in: LPJ001A-T, LPJ001A-T-R2: (1) RJ45; LPJ008A-T-R2: (8) RJ45; LPJ016A-T-R2: (16) RJ45
Data/PoE out: LPJ001A-T, LPJ001A-T-R2: (1) RJ45; LPJ008A-T-R2: (8) RJ45; LPJ016A-T-R2: (16) RJ45
Dimensions LPJ001A-T: 1.4″H x 2.6″W x 5.5″D (3.6 x 6.6 x 14 cm)
LPJ001A-T-R2: 1.1″H x 1.8″W x 5.5″D (2.8x 4.6 x 14 cm)
LPJ008A-T-R2, LPJ016A-T-R2: 1.8″H x 17.3″W x 8.6″D (4.6 x 43.9 x 21.8cm)
Weight LPJ001A-T, LPJ001A-T-R2: 0.4 lb. (0.2 kg)
LPJ008A-T-R2: 6.0 lb. (2.7 kg)
LPJ016A-T-R2: 7.1 lb. (3.2 kg)
