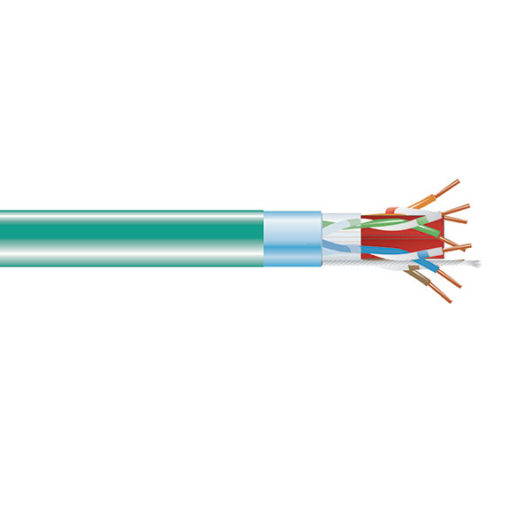

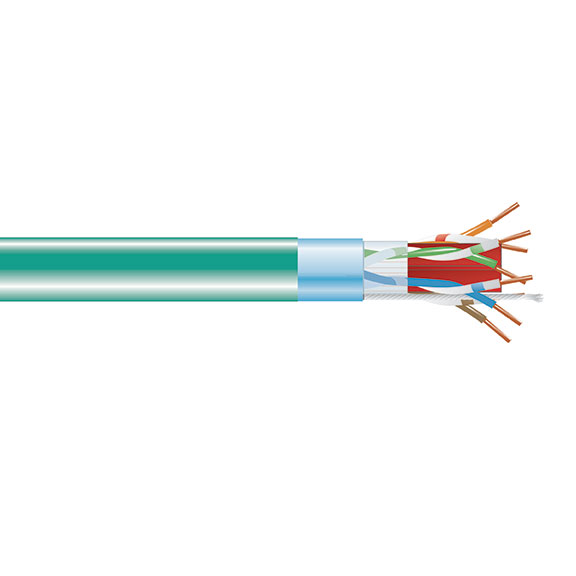

Black Box CAT6A 650-MHz Solid Ethernet Bulk Cable – Shielded (F/UTP), CMP Plenum, Green, 1000-ft. (304.8-m) Spool
Part Number: C6ABC51S-GN-1000
- Use with Black Box; CAT6A components for a 10GBASE-T channel.
- Tested up to 500 MHz.
- Foil shield construction virtually eliminates alien crosstalk.
- A center isolation member maintains pair separation for optimal NEXT performance.
- Supports IEEE 802.3 and 10GBASE-T, and TIA 568-C.2. ETL tested.
- Construction: Internal separator, FEP insulation, dielectric tape, drain wire, aluminum/Mylar tape.
- Smaller outside diameter than normal; CAT6A UTP. (0.271”
| General | |
| ACRF | 37.8 dB at 100 MHz; 29.8 dB at 250 MHz; 26.9 dB at 350 MHz; 20.8 dB at 500 MHz; 21.5 dB at 650 MHz (previously referred to as equal level far end crosstalk (ELFEXT) |
| Bend Radius | 2.17″ (55 mm) |
| Conductors | 4-pair, 23 AWG, solid copper |
| Construction | Internal separator, FEP insulation, dielectric tape, drain wire, aluminum/Mylar tape |
| Insertion Loss (Maximum) | 19.1 at 100 MHz; 45.3 at 500 MHz |
| Insulation | Fluoropolymer (FEP) |
| Jacket | Low-smoke, flame-retardant PVC |
| NEXT | 45.3 dB at 100 MHz; 39.3 dB at 250 MHz; 37.1 dB at 350 MHz; 34.8 dB at 500 MHz; 33.1 dB at 650 MHz |
| Outside Diameter | 0.271″ (6.9 mm) |
| PS-NEXT | 43.3 dB at 100 MHz; 37.3 dB at 250 MHz; 35.1 dB at 350 MHz; 32.8 dB at 500 MHz |
| Return Loss | 20.1 at 100 MHz; 15.5 at 500 MHz |
| RoHS | Yes |
| Standards | IEEE 802.an; TIA 568-C.2; UL®, ETL Tested |
