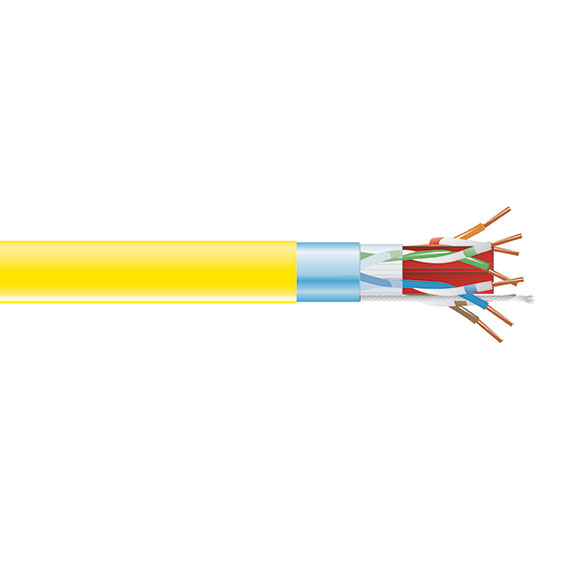

Black Box CAT6A 650-MHz Solid Ethernet Bulk Cable – Shielded (F/UTP), CMP Plenum, Yellow, 1000-ft. (304.8-m) Spool

Part Number: C6ABC51S-YL-1000



  • Use with Black Box; CAT6A components for a 10GBASE-T channel.
  • Tested up to 500 MHz.
  • Foil shield construction virtually eliminates alien crosstalk.
  • A center isolation member maintains pair separation for optimal NEXT performance.
  • Supports IEEE 802.3 and 10GBASE-T, and TIA 568-C.2. ETL tested.
  • Construction: Internal separator, FEP insulation, dielectric tape, drain wire, aluminum/Mylar tape.
  • Smaller outside diameter than normal; CAT6A UTP. (0.271ā€



General
ACRF 37.8 dB at 100 MHz; 29.8 dB at 250 MHz; 26.9 dB at 350 MHz; 20.8 dB at 500 MHz; 21.5 dB at 650 MHz (previously referred to as equal level far end crosstalk (ELFEXT)
Bend Radius 2.17″ (55 mm)
Conductors 4-pair, 23 AWG, solid copper
Construction Internal separator, FEP insulation, dielectric tape, drain wire, aluminum/Mylar tape
Insertion Loss (Maximum) 19.1 at 100 MHz; 45.3 at 500 MHz
Insulation Fluoropolymer (FEP)
Jacket Low-smoke, flame-retardant PVC
NEXT 45.3 dB at 100 MHz; 39.3 dB at 250 MHz; 37.1 dB at 350 MHz; 34.8 dB at 500 MHz; 33.1 dB at 650 MHz
Outside Diameter 0.271″ (6.9 mm)
PS-NEXT 43.3 dB at 100 MHz; 37.3 dB at 250 MHz; 35.1 dB at 350 MHz; 32.8 dB at 500 MHz
Return Loss 20.1 at 100 MHz; 15.5 at 500 MHz
RoHS Yes
Standards IEEE 802.an; TIA 568-C.2; ULĀ®, ETL Tested
