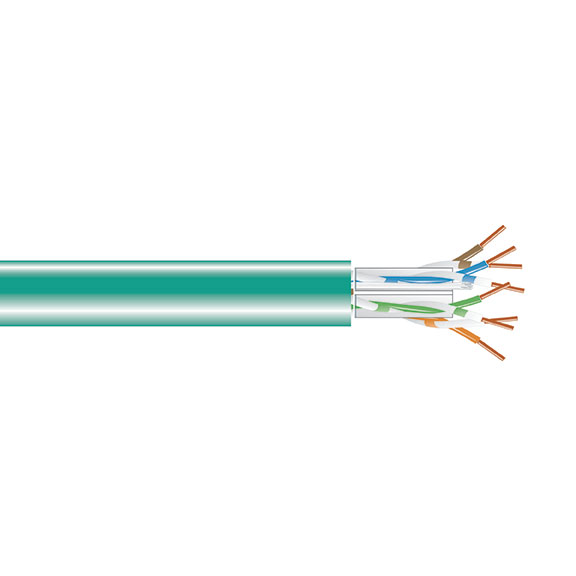

Black Box CAT6A 650-MHz Solid Ethernet Bulk Cable – Unshielded (UTP), CMR PVC, Green, 1000-ft. (304.8-m) Spool
Part Number: C6ABC50-GN-1000
- ETL Verified for component-level performance and as part of our CAT6A channel.
- Supports 10-GbE up to 328 feet (100 m).
- Supports PoE and PoE+ for VoIP, WAP, and security applications.
- Ideal for server-to-server/-storage/-switch, distributed backbone, and zone connections.
| ACRF | 27.8 dB/100 m at 100 MHz; 19.84 dB/100 m at 250 MHz; 14.74 dB at 500 MHz |
| Approvals | ETL Verified; ANSI/TIA-568-C.2 Category 6A; IEEE 802.3 an; UL® 444, 1666; UL® E196163-P Dimensions Diameter: 0.318″ |
| Capacitance Unbalance (Pair to Ground) | 330 pF/100 m max. |
| Conductor | 23-AWG solid, bare copper |
| Cross Web (PVC) | Flame-resistant PE |
| DCR Unbalance | 4% max. |
| Delay Skew | 45 ns/100 m at 650 MHz max. |
| Insertion Loss (Maximum) | 19.14 dB/100 m at 100 MHz; 31.07 dB/100 m at 250 MHz; 42.71 dB at 500 MHz |
| Insulation | HDPE |
| Jacket | Flame-resistant PVC, CMP |
| NEXT | 44.30 dB/100 m at 100 MHz; 38.33 dB/100 m at 250 MHz; 34.50 dB at 500 MHz |
| Number of Pairs | 4 Pairs |
| Propagation Delay | 537.6 dB/100 m at 100 MHz; 536.28 dB/100 m at 250 MHz; 535.7 dB at 500 MHz |
| PS-AACRF | 38.2 dB/100 m at 100 MHz; 30.24 dB/100 m at 250 MHz; 25.14 dB at 500 MHz |
| PS-ACRF | 24.8 dB/100 m at 100 MHz; 16.84 dB/100 m at 250 MHz; 11.74 dB at 500 MHz |
| PS-ANEXT | 62.5 dB/100 m at 100 MHz; 56.53 dB/100 m at 250 MHz; 52.7 dB at 500 MHz |
| PS-NEXT | 42.30 dB/100 m at 100 MHz; 36.33 dB/100 m at 250 MHz; 32.50 dB at 500 MHz |
| Return Loss | 20.11 dB/100 m at 100 MHz; 17.32 dB/100 m at 250 MHz; 15.53 dB at 500 MHz |
