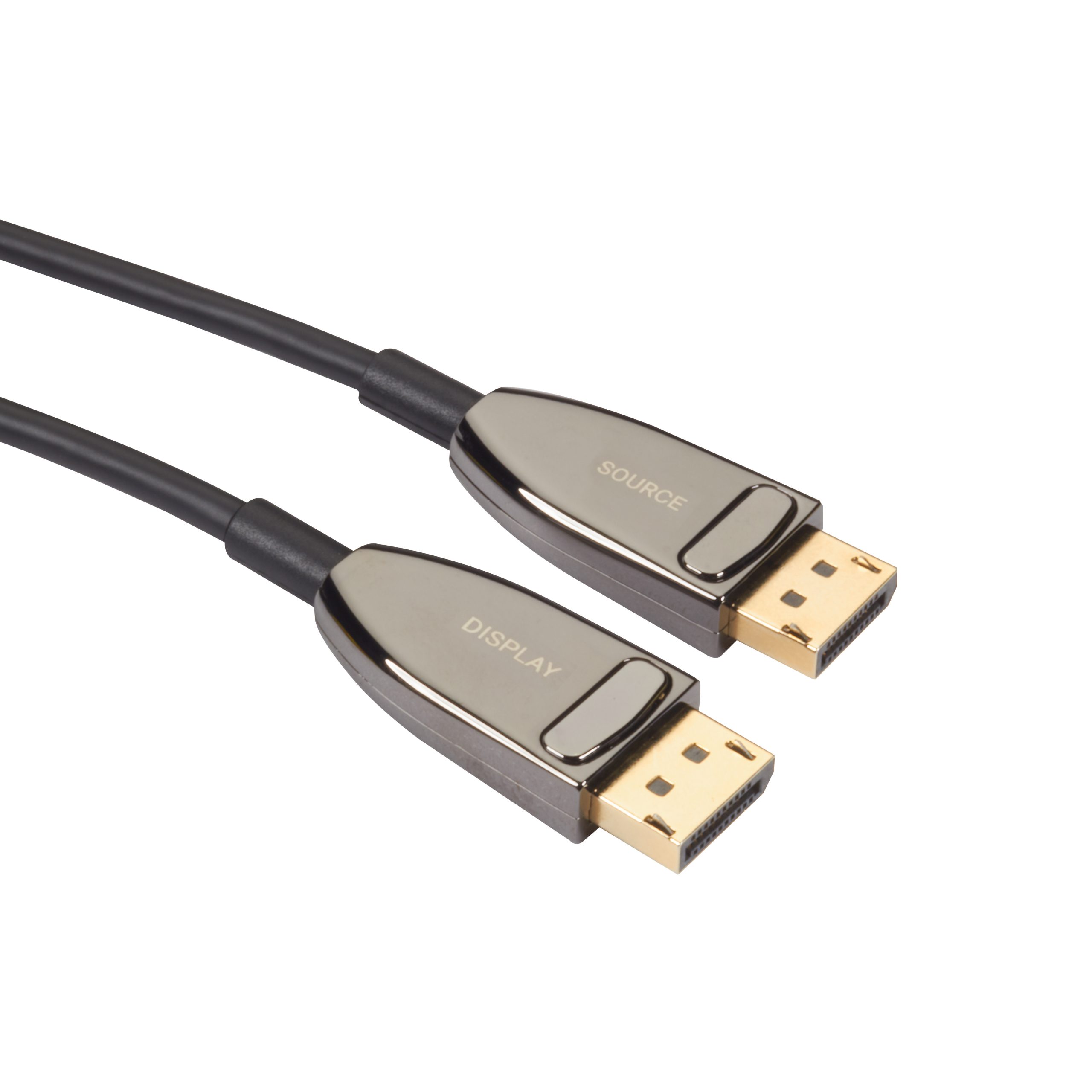

Black Box DisplayPort 1.4 Active Optical Cable (AOC) – 8K60, 32.4 Gbps, 100-m (328-ft.)

Part Number: AOC-HL-DP4-100M



  • Extend full 7680 x 4320 (8K) @ 60Hz video signals up to 100m (328ft)
  • Fully supports DisplayPort 1.4 spec, including DPCP, 32.4Gbps bandwidth and more
  • PCM, DTS-HD Master and Dolby Digital True HD Surround Sound compatible
  • Practically Zero EMI/RFI profile for flawless performance
  • Hybrid Fiber/Copper design requires no external power
  • Supports HDR / EDID / DDC / CEC



Environmental
Storage Humidity 5 to 89% RH, noncondensing
Storage Temperature 14 to 158° F (-10 to 70° C)
Operating Humidity 32 to 158° F (0 to 70 ° C)
Operating Temperature 10 to 85% RH, condensing
General
MTBF 144,717,800 hours
Item Specifications
Connector A DisplayPort male
Connector B DisplayPort male
Diameter (Outer) 0.189” (4.8 mm)
Physical
Fiber Glass Type OM3
Connector Plating Nickel
Jacket Material LSZH
Fiber Mode MM
Power
Consumption 250 mW
Video
Color Depth (Maximum) 30/36/48-bit Deep Color: 48-bit
Video Resolution (Maximum) 7680 x 4320 (8K) @ 60 Hz (4:2:0)
Bandwidth 32.4 Gbps
DisplayPort Standard 1.4
