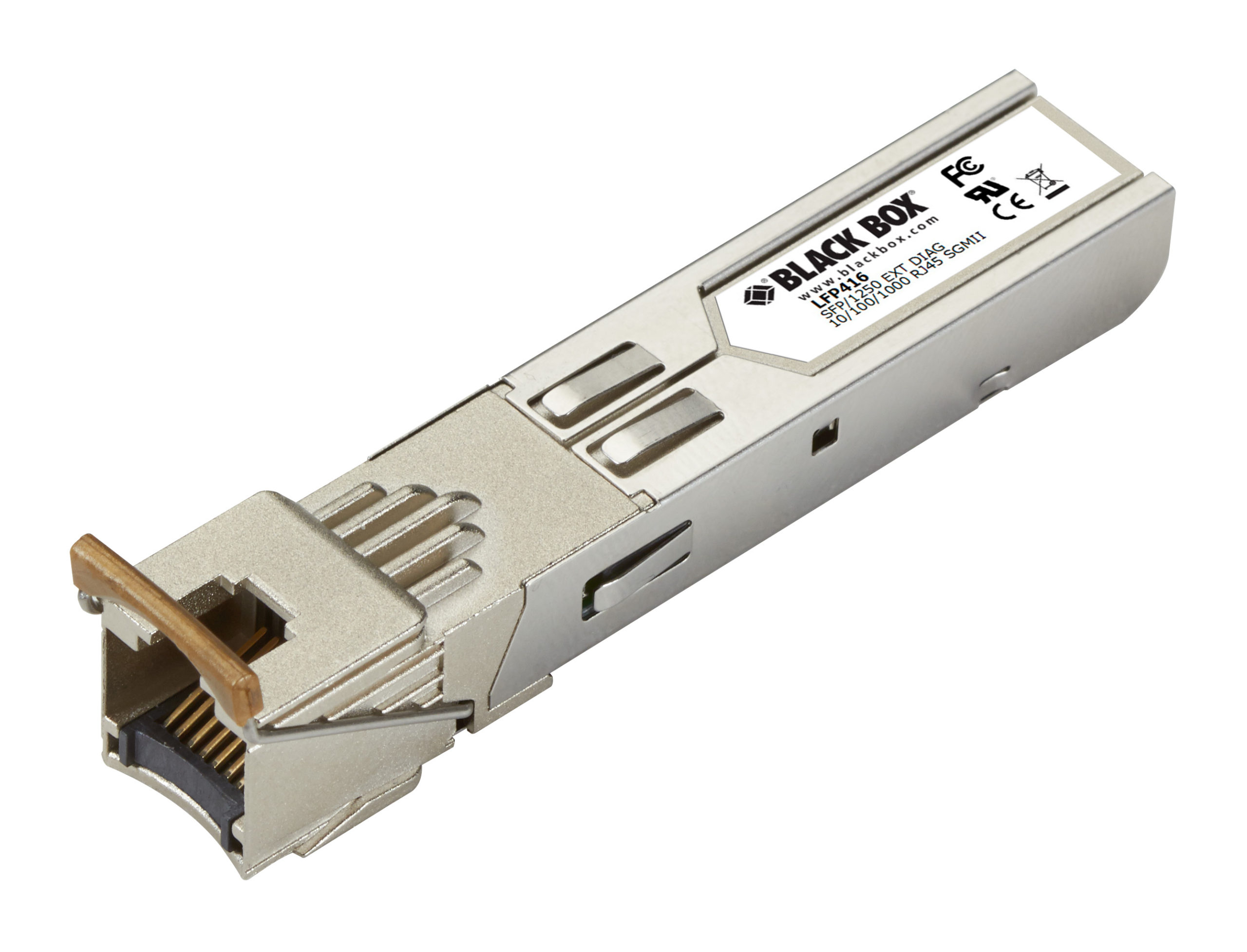

Black Box LFP410 Series Gigabit (1.25-Gbps) Extreme Temperature SFP with Extended Diagnostics - (1) 1.25-Gbps Copper RJ45, SGMII, 100m LFP416

Part no: LFP416

Black Box LFP410 Series Gigabit (1.25-Gbps) Extreme Temperature SFP with Extended Diagnostics – (1) 1.25-Gbps Copper RJ45, SGMII, 100m LFP416

Call for Details | Why Can't I See a Price?

Touchpoint can assist with new and refurbished equipment in most cases.

Request a Quote

  • We are a B2B sales organisation & do not sell to individual consumers.
  • We are located in Australia and in most cases will not be able to sell outside AU/NZ
  • This field is hidden when viewing the form
  • This field is hidden when viewing the form
  • This field is hidden when viewing the form

Black Box LFP410 Series Gigabit (1.25-Gbps) Extreme Temperature SFP with Extended Diagnostics – (1) 1.25-Gbps Copper RJ45, SGMII, 100m

Part Number: LFP416



  • Autosensing for 10/100/1000-Mbps operation.
  • Link length up to 100 meters over CAT5 or better UTP cable.
  • Throughput up to 1.25 Gbps.
  • Reports basic link characteristics such as SFP type, length of the fiber link, wavelength, and bit rate.
  • Great for industrial use. Offers an operating temperature range of -40° to +185° F (-40° to +85° C).
  • A hot-pluggable interface enables you to change SFPs on the fly when your network requirements change.
  • Auto-detects MDI/MDI-X.
  • Complies with SFP Multi-Source Agreements standards (MSA).



Altitude 5905 ft. (1800 m)
Approvals CE, UL®, RoHS2, TUV, FCC
Environmental Operating Humiditiy: 85% non-condensing;
Input Power Watts 1W
Input Voltage 3.3 VDC (3.1 V minumum to 3.5 V maximum) 330 mA
Interface Mac: SDMII
Operating Humidity 85% non-condensing
Operating Temperature -40° to +185° F (-40° to +85° C)
Power SFP Cage
Speed 10/100/1000-Mbps
