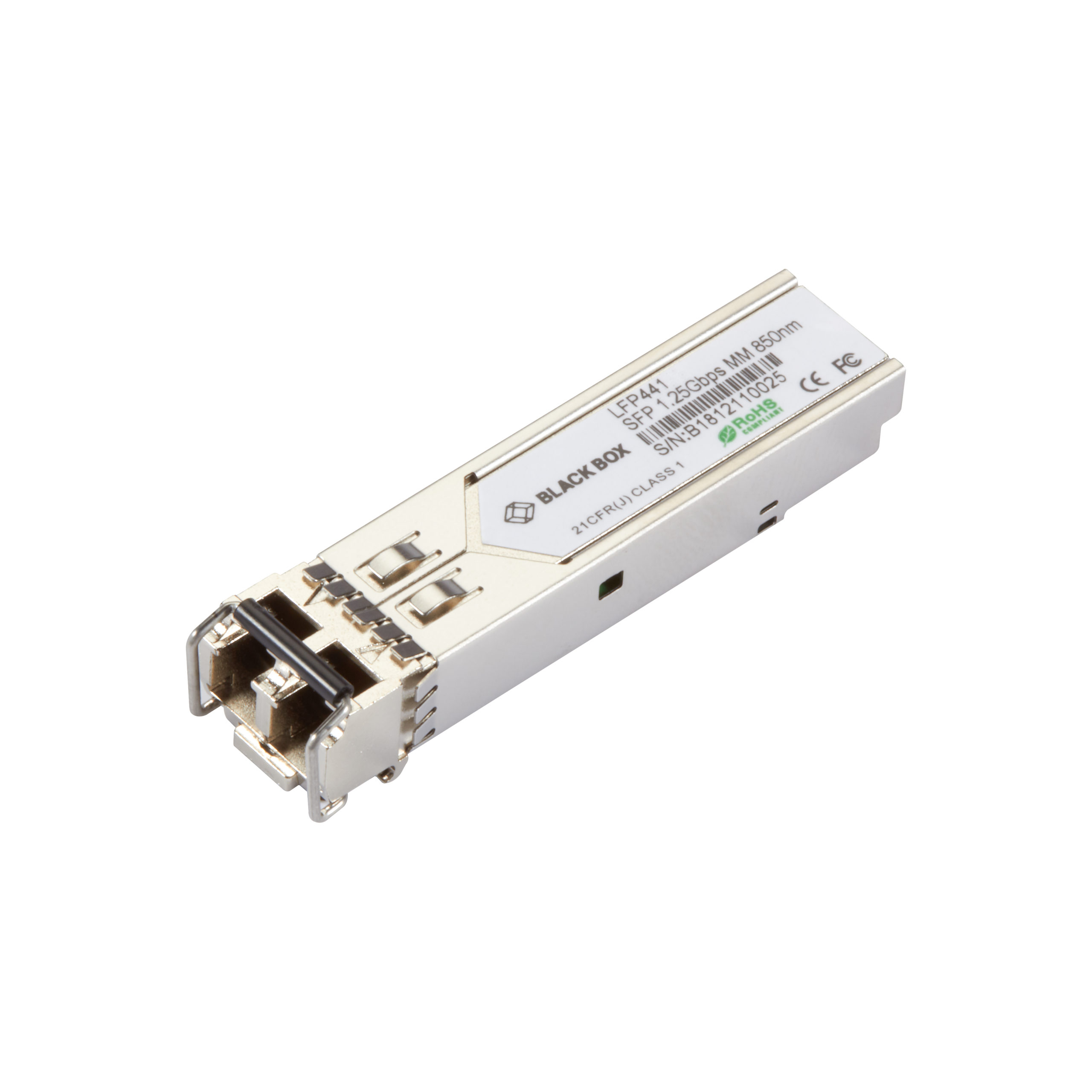

Black Box LFP440 Series Gigabit (1.25-Gbps) SFP - (1) 1.25-Gbps Multimode Fiber, 850nm, 550m, LC LFP441

Part no: LFP441

Black Box LFP440 Series Gigabit (1.25-Gbps) SFP – (1) 1.25-Gbps Multimode Fiber, 850nm, 550m, LC LFP441

Call for Details

Request a Quote

  • We are a B2B sales organisation & do not sell to individual consumers.
  • We are located in Australia and in most cases will not be able to sell outside AU/NZ
  • This field is hidden when viewing the form
  • This field is hidden when viewing the form
  • This field is hidden when viewing the form

Black Box LFP440 Series Gigabit (1.25-Gbps) SFP – (1) 1.25-Gbps Multimode Fiber, 850nm, 550m, LC

Part Number: LFP441



  • SFP package with LC connector
  • 850nm VCSEL Laser and PIN photo detector
  • Up to 550m transmission on 50/125 um MMF
  • +3.3V single power supply
  • LVPECL compatible data input/output interface
  • Low EMI and excellent ESD protection
  • Laser safety standard IEC-60825 compliant
  • Compatible with RoHS
  • Digital Diagnostic SFF-8472 compliant



Listings CE, FCC
Distance 550 m, maximum
Operating Humidity 5 to 85% non-condensing
Operating Temperature 32 to 158°F (0 to 70°C)
Power 1 W
Speed 1.25 Gbps
Storage temperature -40 to 185°F (-40 to 85°C)
Fiber Type 50-Micron multimode
Wavelength 850 nm
Input 3.3 V
Source from SFP cage
