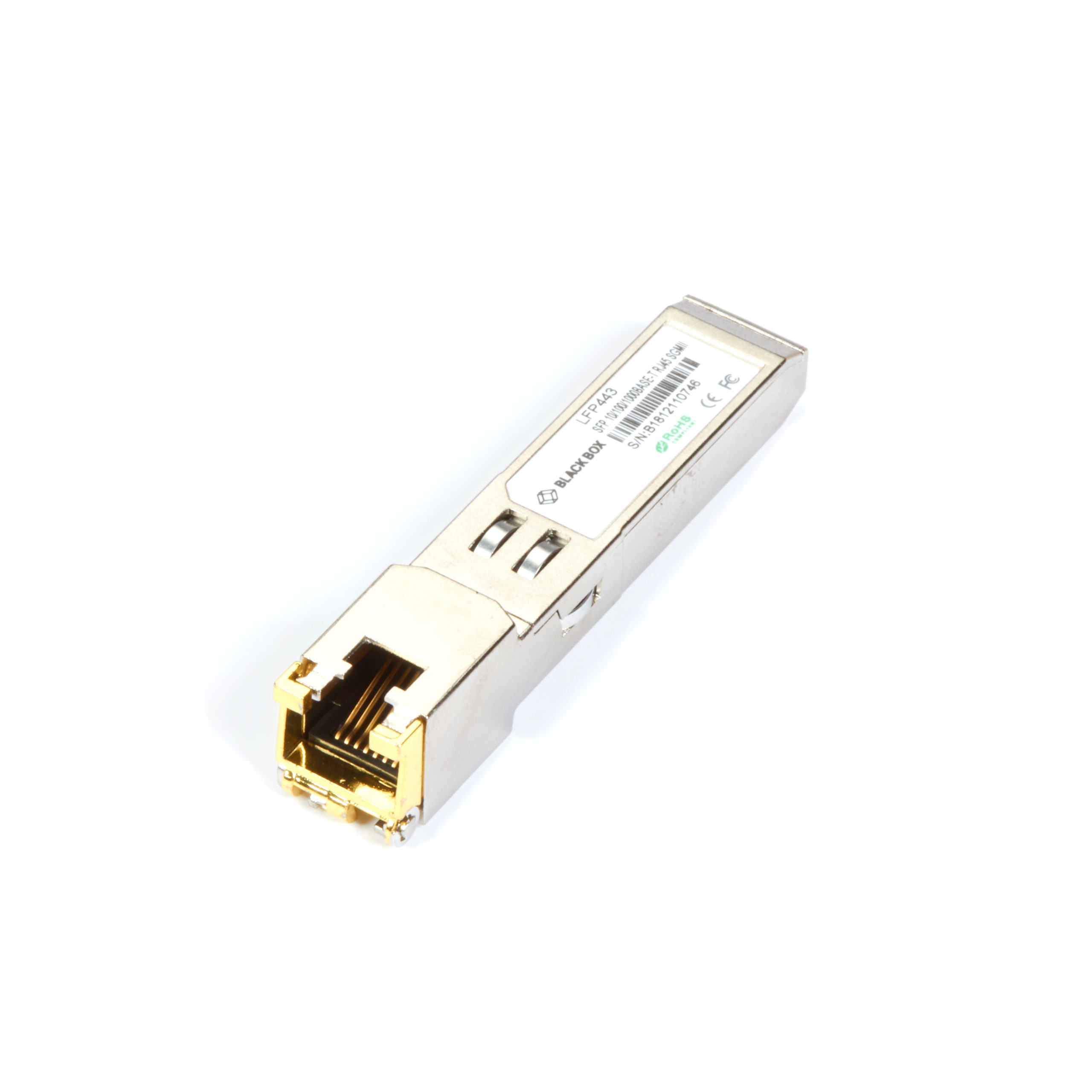

Black Box LFP440 Series Gigabit (1.25-Gbps) SFP - (1) 10/100/1000-Mbps Copper RJ45, 100m, SGMII, 100m LFP443

Part no: LFP443

Black Box LFP440 Series Gigabit (1.25-Gbps) SFP – (1) 10/100/1000-Mbps Copper RJ45, 100m, SGMII, 100m LFP443

Call for Details

Request a Quote

Name*
Email*
Phone*
Company*
We are a B2B sales organisation & do not sell to individual consumers.
Delivery Location
We are located in Australia and in most cases will not be able to sell outside AU/NZ
This field is hidden when viewing the form
Product
This field is hidden when viewing the form
Desired Quantity
How quickly do you need this quote?
- 1hr
- 4hrs
- 24hrs
- 48hrs
This field is hidden when viewing the form
Order Details
Order Details*
Receive latest updates and offers from Touchpoint
Receive latest updates and offers from Touchpoint

Product Information

Black Box LFP440 Series Gigabit (1.25-Gbps) SFP – (1) 10/100/1000-Mbps Copper RJ45, 100m, SGMII, 100m

Part Number: LFP443

Up to 1.25 Gb/s bi-directional data links
Hot-pluggable SFP footprint
Low power dissipation(1.05W typical)
Compact RJ-45 connector assembly
Fully metal enclosure, for lower EMI
RoHS compliant and lead-free
Single +3.3V power supply
10/100/1000 BASE-T operation in host systems with SGMII interface
1.25 Gigabit Ethernet over Cat 5 cable
Case operating temperature: Commercial: 0°C to +70°C Extended: -10°C to +80°C Industrial: -40°C to +85°C

General
Distance	100 m, maximum
Operating Humidity	5 to 85% non-condensing
Operating Temperature	32 to 158°F (0 to 70°C)
Power	1.1 W
Speed	1.25 Gbps
Storage temperature	-40 to 185°F (-40 to 85°C)
Item Specifications
Connectors	RJ-45
Dimensions	0.6″H x 0.6″W x 2.7″D (14 x 14 x 68mm)
Weight	0.036 lb (.016 kg)
Physical
Fiber Type	CATx
Power
Input	3.3 V
Source	from SFP cage
