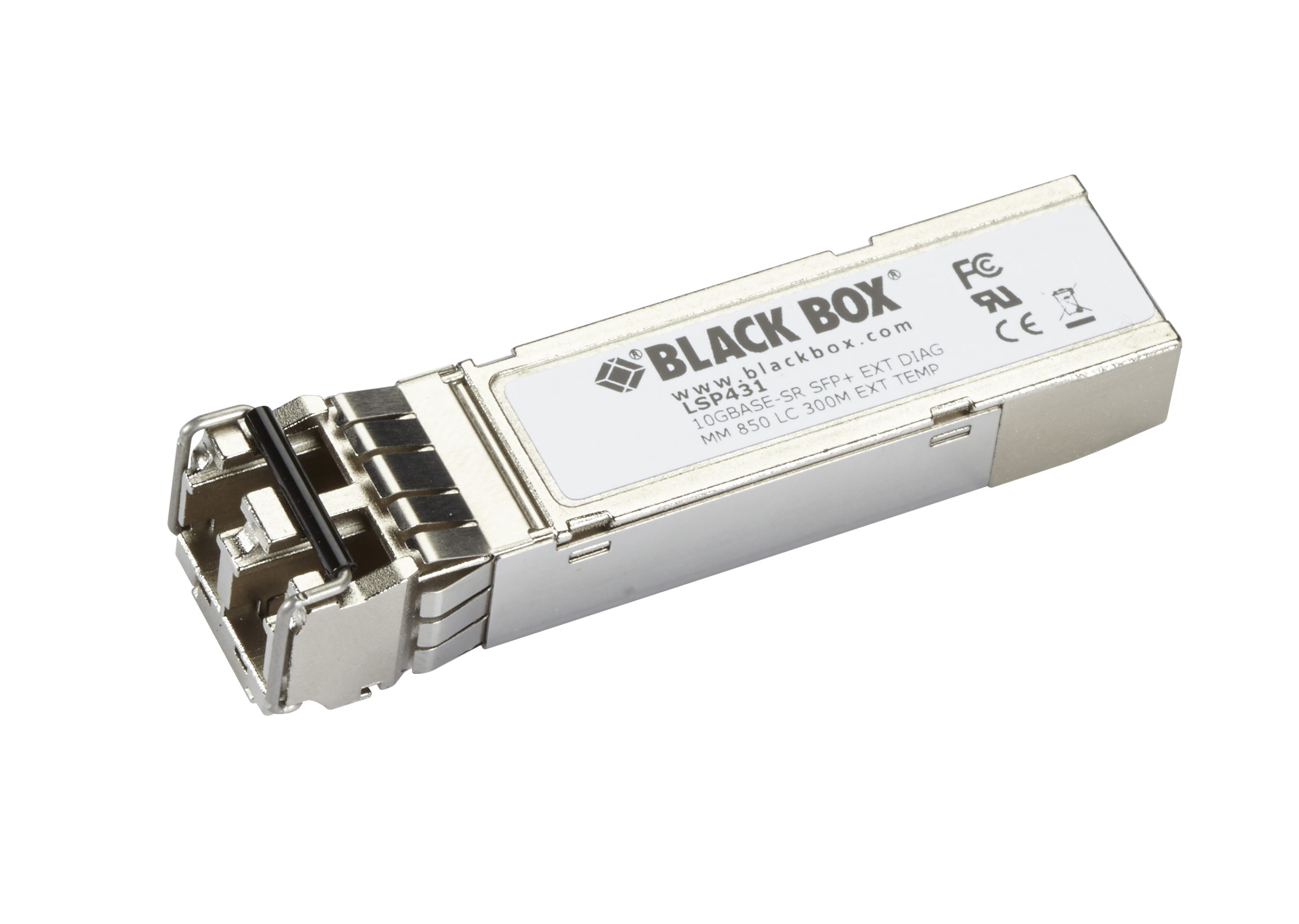

Black Box LSP400 Series 10G (10-Gbps) Extreme Temperature SFP+ with Extended Diagnostics – (1) 10G Multimode Fiber, 850nm, 300m, LC
Part Number: LSP431
- Great for telecoms and enterprises requiring 10-GbE fiber extension.
- Compact, interchangeable, and hot-swappable.
- Metal enclosure helps shield communications from EMI interference.
- When used within a managed platform, supports digital diagnostic capabilities and loopbacks for easier maintenance.
- Supports the standard wavelength spectrum as defined by ITU G.694.2.
- MSA SFF-8472 and INF-8077i compliant, supporting interoperability with other network devices.
| Environmental | |
| Altitude | 5905 ft (1800 m) |
| Operating Humidity | 5 to 85% non condensing |
| Operating Temperature | -40 to 185°F (-40 to 85°C) |
| Storage Temperature | -40 to 185°F (-40 to 85°C) |
| General | |
| Altitude | 5905 ft (1800 m) |
| Approvals | CE, FCC, TUV, UL |
| Operating Humidity | 5 to 85% non condensing |
| Operating Temperature | -40 to 185°F (-40 to 85°C) |
| Speed | 10 Gbps |
| Storage temperature | -40 to 185°F (-40 to 85°C) |
| Wavelength | 850 nm |
| Item Specifications | |
| Connectors | Duplex LC |
| Dimensions | 2.2″H x 0.6″W x 0.5″D (5.6 x 1.52 x 1.24 cm) |
| Physical | |
| Distance | 300 m, maximum |
| Fiber Type | 50-Micron multimode |
| Speed | 10 Gbps |
| Wavelength | 850 nm |
| Power | |
| Input | 3.135 VCC minimum, 3.3 V, 180 mA typical, 3.465 V, 300 mA maximum |
| Source | from SFP+ cage |
