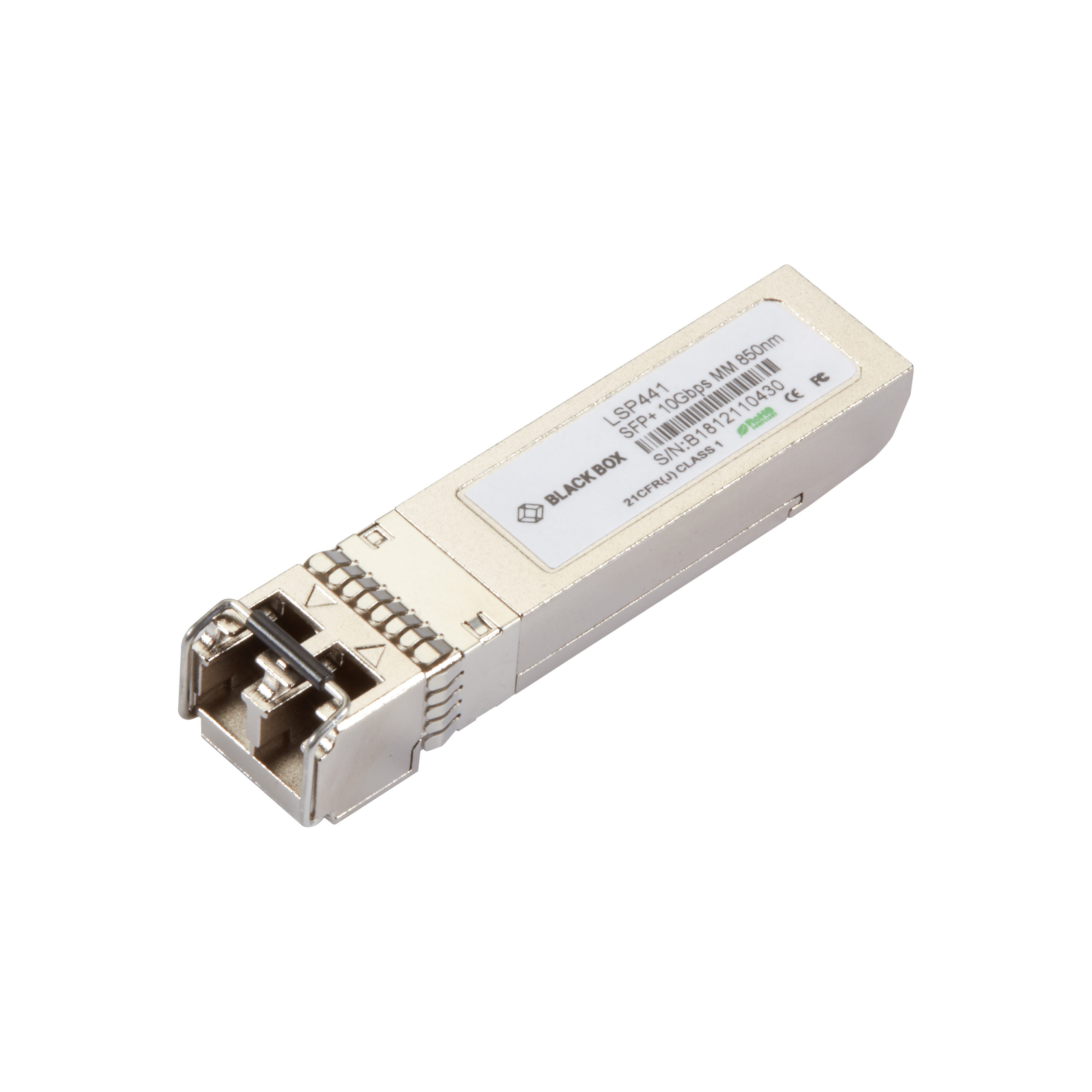

Black Box LSP400 Series 10G (10-Gbps) SFP+ – (1) 10-Gb Multimode Fiber, 850nm, 300m, LC
Part Number: LSP441
- SFP+ package with LC connector
- 850nm VCSEL Laser and PIN photo detector
- Up to 300m transmission on 2000MHz-km MMF
- Power dissipation < 1W
- LVPECL compatible data input/output interface
- Low EMI and excellent ESD protection
- Laser safety standard IEC-60825 compliant
- Compatible with RoHS
- Compatible with SFF8472
| General | |
| Distance | 300 m, maximum |
| Operating Humidity | 5 to 85% non-condensing |
| Operating Temperature | 32 to 158°F (0 to 70°C) |
| Power | 1 W |
| Speed | 10.3 Gbps |
| Storage temperature | -40 to 185°F (-40 to 85°C) |
| Item Specifications | |
| Connectors | Duplex LC |
| Dimensions | 0.2″H x 0.5″W x 2.2″D (8.5 x 13.7 x 55.4 mm) |
| Weight | 0.036 lb (.016 kg) |
| Physical | |
| Fiber Type | 50-Micron multimode |
| Wavelength | 850 nm |
| Power | |
| Input | 3.3 V |
| Source | from SFP cage |
