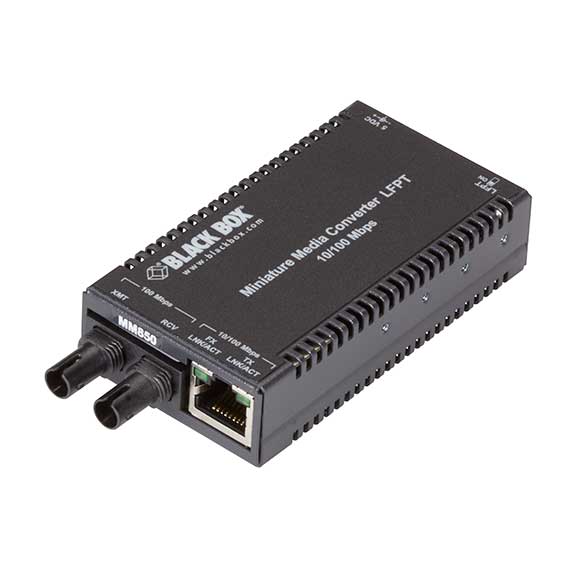

Black Box MultiPower Miniature Fast Ethernet (100-Mbps) Media Converter - 10/100-Mbps Copper to 100-Mbps Multimode Fiber, 850nm, 0.3km LHC040A-R3

Part no: LHC040A-R3

Black Box MultiPower Miniature Fast Ethernet (100-Mbps) Media Converter – 10/100-Mbps Copper to 100-Mbps Multimode Fiber, 850nm, 0.3km LHC040A-R3

Call for Details | Why Can't I See a Price?

Touchpoint can assist with new and refurbished equipment in most cases.

Request a Quote

  • We are a B2B sales organisation & do not sell to individual consumers.
  • We are located in Australia and in most cases will not be able to sell outside AU/NZ
  • This field is hidden when viewing the form
  • This field is hidden when viewing the form
  • This field is hidden when viewing the form

Black Box MultiPower Miniature Fast Ethernet (100-Mbps) Media Converter – 10/100-Mbps Copper to 100-Mbps Multimode Fiber, 850nm, 0.3km

Part Number: LHC040A-R3



  • Bring fiber to the desktop more conveniently and at a lower cost than installing fiber NICs
  • Compact size; measures just 0.8″H x 1.8″W x 3.4″D.
  • Powered by a universal AC power supply or the optional rackmountable PowerTray.
  • Auto MDI/MDI-X means you never need to worry about what kind of cable to use.
  • Converters may also be powered from a USB port using the LHC021A USB power cable.



General
Approvals CE
Cable Requirements Twisted pair: CAT5 or above, shielded or unshielded; Multimode fiber: 50-/125-µm or 62.5-/125-µm duplex
Humidity 5 to 95%, noncondensing
Operating temperature +32 to +104°F (+0° to +40°C);
Power From the included external 100-240-VAC, 50-60-Hz adapter; Via USB Power Adapter Cable (LHC021A) connected to a computer’s USB port; From the PowerTray with a 100-240 VAC, 50-60 Hz (LHC018A-AC-R2) power supply
Storage temperature 0 to 160°F (-20 to +70°C);
Item Specifications
Connectors (1) RJ-45, with autocross for MDI-II/MDI-X; , (1) pair of ST®
Dimensions 0.8″H x 1.8″W x 3.4″D (2 x 4.6 x 8.6 cm)
Indicators LEDs: Per twisted-pair port: (1) TX Link/ACT, (1) FX Link/ACT; Per fiber port: (1) XMT, (1) RCV
