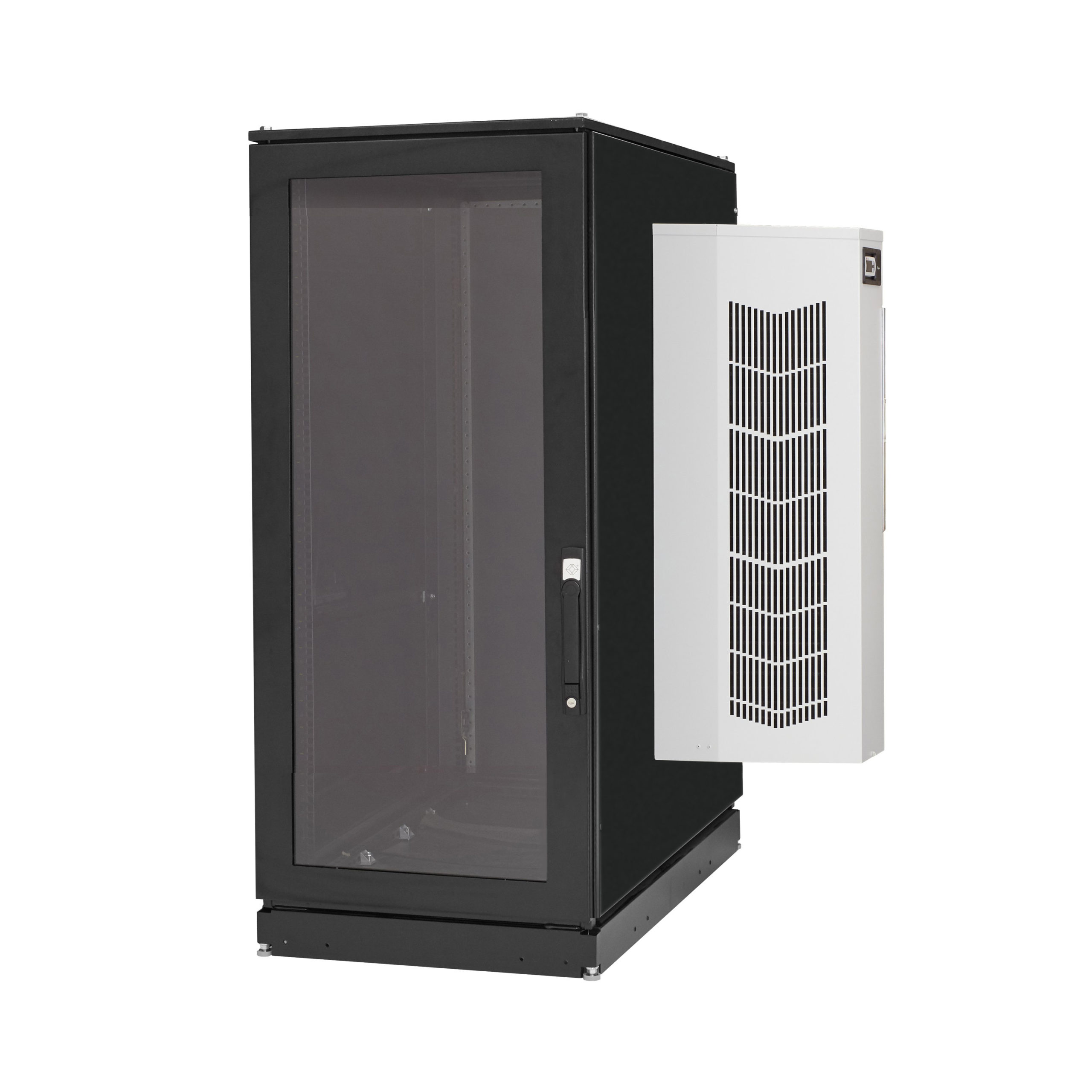

Black Box NEMA 12 Networking Cabinet with AC – 31.5″ D, 24U, 6000 BTU, M6 Square Holes, 230V

Part Number: CC24U6000M63123



  • Includes AC unit mounts on the side of the ClimateCab cabinet. Installation takes about five minutes.
  • The fully welded 12-gauge steel frame holds up to 2000 pounds (907 kg).
  • Three-point locking handles on front and rear doors.
  • Features standard 19″ rails.
  • Includes casters and levelers.
  • Rack angles are adjustable front to rear.
  • Fully-gasketed openings, including a gland plate in the base, help to protect your devices from dust and other contaminants.
  • PLEXI-GLAS® window in the front door.



General
Approvals CE
Capacity 2000 pounds (907 kg)
Construction Frame: Welded 12-gauge steel with integral struts
Body and Door: 14-gauge steel with PLEXI-GLAS window
Mounting Rails: 12-gauge steel
Noise Level 66.7 dB
Power 230 VAC, 50 Hz
Specifications
Dimensions Cabinet: 46.512″H x 27.84″W x 31.449″D (118.14 x 70.71 x 79.88 cm) Width with AC unit installed: (50.888″ H w/caster base & 33.686″ D with handles)
Rack Units 24U
Weight 594.5 lb. (269.7 kg)
