Black Box NEMA 12 Networking Cabinet with AC - 40

Part no: CC24U6000M640

Black Box NEMA 12 Networking Cabinet with AC – 40″ D, 24U, 6000 BTU, M6 Rails, 120V CC24U6000M640

Call for Details | Why Can't I See a Price?

Touchpoint can assist with new and refurbished equipment in most cases.

Request a Quote

  • We are a B2B sales organisation & do not sell to individual consumers.
  • We are located in Australia and in most cases will not be able to sell outside AU/NZ
  • This field is hidden when viewing the form
  • This field is hidden when viewing the form
  • This field is hidden when viewing the form

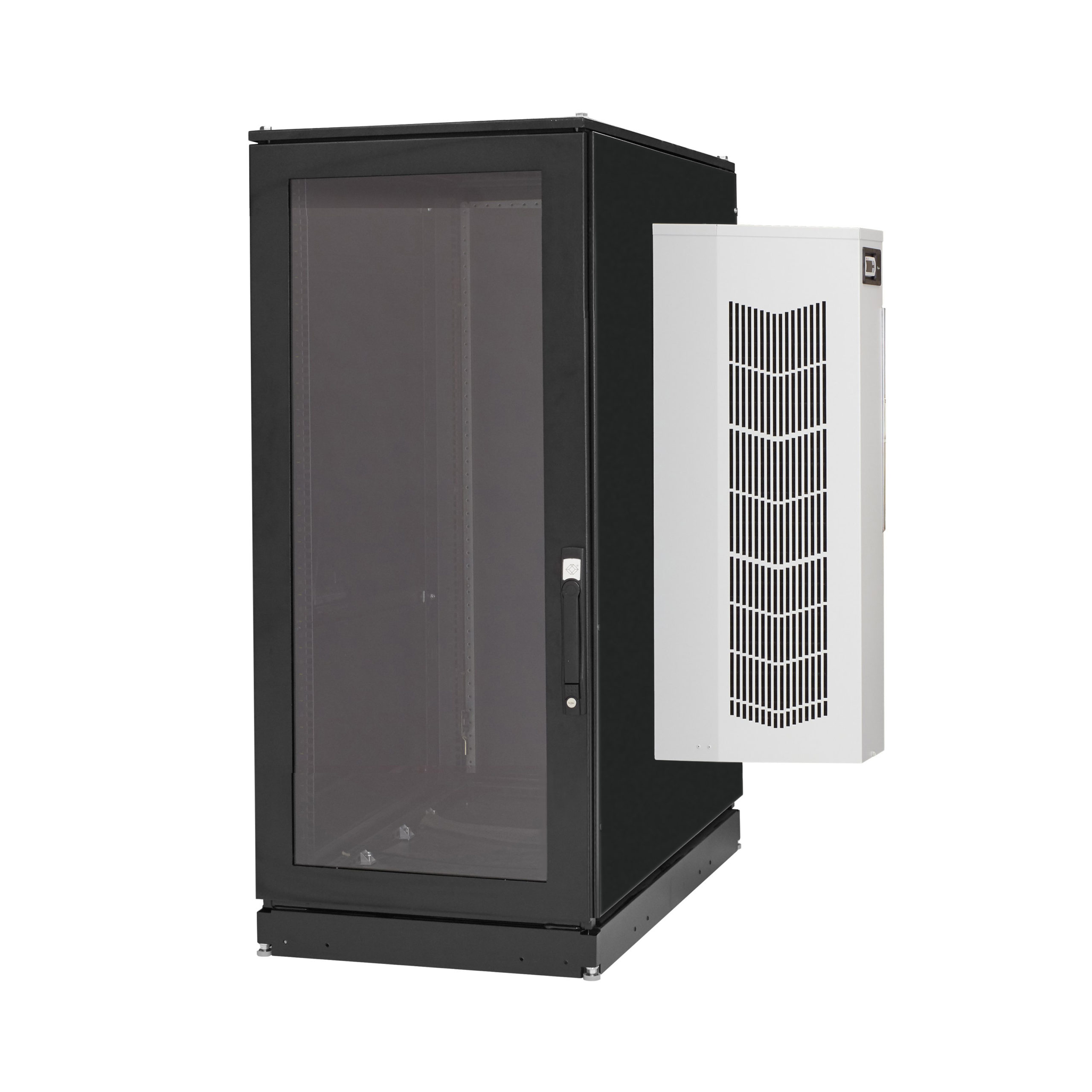

Black Box NEMA 12 Networking Cabinet with AC – 40″ D, 24U, 6000 BTU, M6 Rails, 120V

Part Number: CC24U6000M640



  • Digitally controlled air conditioners are available in 6000, 8000, and 12,000 BTUs (1758, 2344, and 3516 W) and in 120V or 230V (other models available upon request)
  • No plumbing needed. An internal evaporator eliminates condensation
  • Holds up to 1500 pounds
  • Available with M6 or16-32 tapped rails • PLEXIGLAS® window in front door
  • Gland plates provide protected cable access
  • 3-point locking handles on front and rear doors
  • Casters and levelers are included for easy placement
  • Choose from 24U and 42U models



General
Approvals CE
Capacity 2000 pounds (907 kg)
Construction Frame: Welded 12-gauge steel with integral strutsBody and Door: 14-gauge steel with PLEXI-GLAS windowMounting Rails: 12-gauge steel
Noise Level 66.9 dB
Power 120 VAC, 60 Hz
Item Specifications
Dimensions Cabinet: 46.512″ H x 27.858″ W x 39.323″ D (118.14 x 70.75 x 99.88 cm) Width with AC unit installed: (50.888″ H w/caster base & 41.56″ D with handles)
Rack Units 24U
Weight Shipping: 479.5 lb. (217.5 kg)
Weight (Shipping) 479.5 lb. (217.5 kg)
