Black Box NEMA 12 Networking Cabinet with AC - 40

Part no: CC24U8000M640-R3

Black Box NEMA 12 Networking Cabinet with AC – 40″ D, 24U, 8000 BTU, M6 Square Holes, 120V CC24U8000M640-R3

Call for Details | Why Can't I See a Price?

Touchpoint can assist with new and refurbished equipment in most cases.

Request a Quote

  • We are a B2B sales organisation & do not sell to individual consumers.
  • We are located in Australia and in most cases will not be able to sell outside AU/NZ
  • This field is hidden when viewing the form
  • This field is hidden when viewing the form
  • This field is hidden when viewing the form

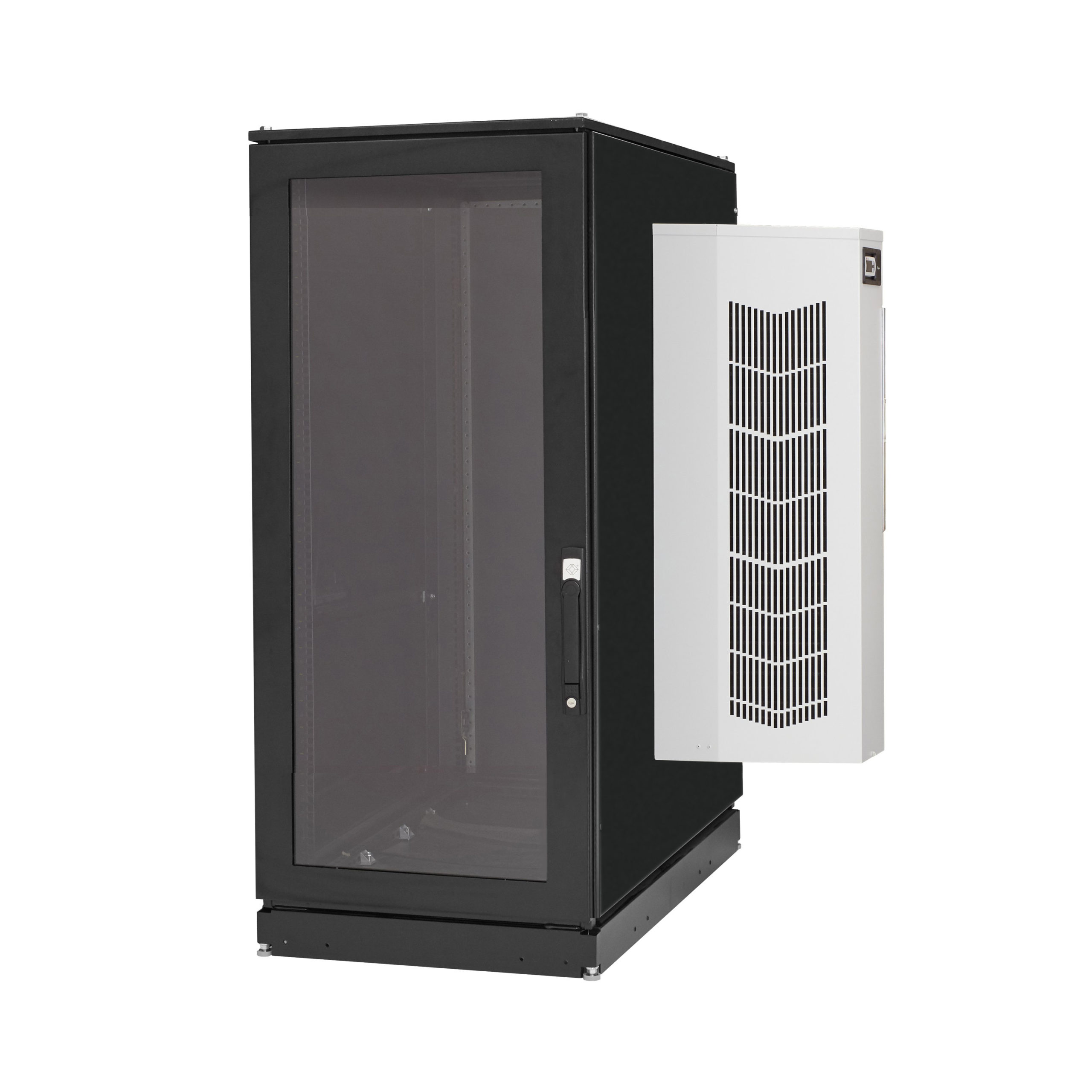

Black Box NEMA 12 Networking Cabinet with AC – 40″ D, 24U, 8000 BTU, M6 Square Holes, 120V

Part Number: CC24U8000M640-R3



  • Includes AC unit mounts on the side of the ClimateCab cabinet. Installation takes about five minutes.
  • The fully welded 12-gauge steel frame holds up to 2000 pounds (907 kg).
  • Three-point locking handles on front and rear doors.
  • Features standard 19″ rails.
  • Includes casters and levelers.
  • Rack angles are adjustable front to rear.
  • Fully-gasketed openings, including a gland plate in the base, help to protect your devices from dust and other contaminants.
  • PLEXI-GLAS® window in the front door.



General
Approvals CE
Capacity 2000 pounds (907 kg)
Construction Frame: Welded 12-gauge steel with integral strutsBody and Door: 14-gauge steel with PLEXI-GLAS windowMounting Rails: 12-gauge steel
Noise Level 66.0 dB
Power 120 VAC, 60 Hz
Item Specifications
Dimensions Cabinet: 46.512″ H x 27.858″ W x 39.323″ D (118.14 x 70.75 x 99.88 cm) Width with AC unit installed: (50.888″ H w/caster base & 41.56″ D with handles)
Rack Units 42U
Weight Shipping: 478.5 lb. (217 kg)
Weight (Shipping) 478.5 lb. (217 kg)
