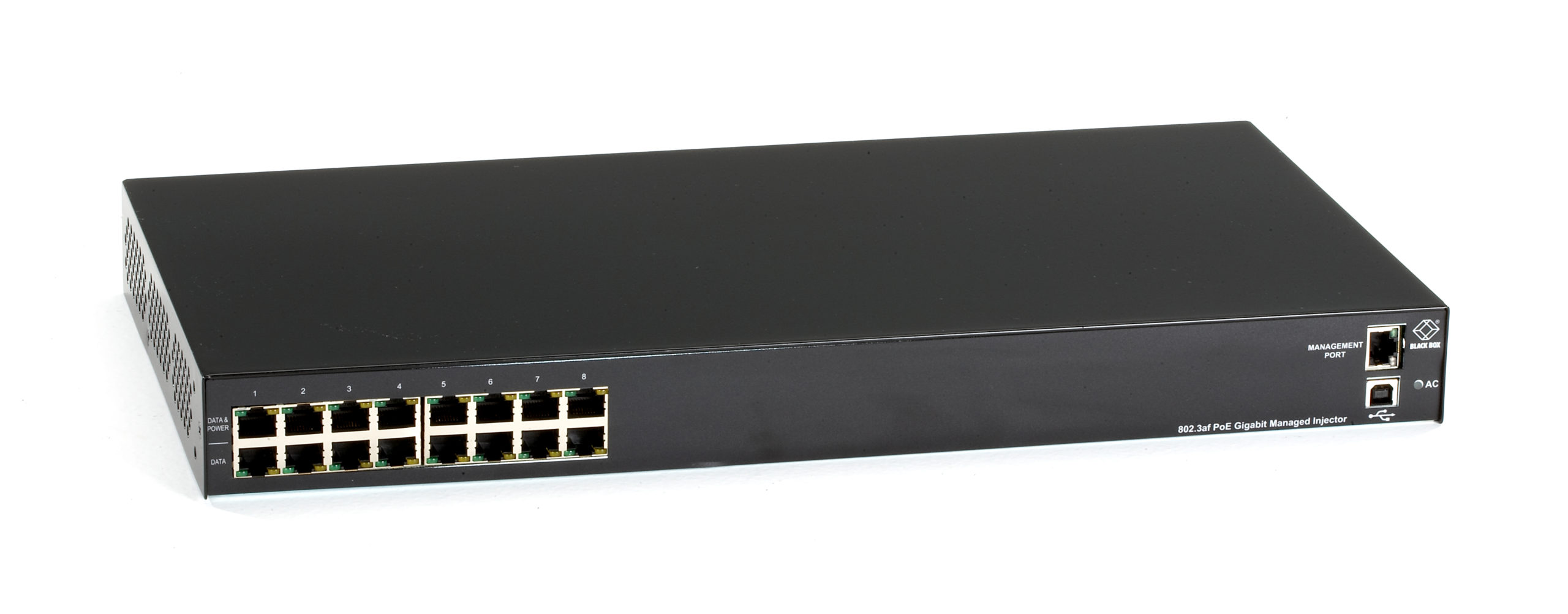

Black Box PoE Gigabit Ethernet Injector - 802.3af, Managed, 8-Port LPJ008A-FM

Part no: LPJ008A-FM

Black Box PoE Gigabit Ethernet Injector – 802.3af, Managed, 8-Port LPJ008A-FM

Call for Details

Request a Quote

  • We are a B2B sales organisation & do not sell to individual consumers.
  • We are located in Australia and in most cases will not be able to sell outside AU/NZ
  • This field is hidden when viewing the form
  • This field is hidden when viewing the form
  • This field is hidden when viewing the form

Black Box PoE Gigabit Ethernet Injector – 802.3af, Managed, 8-Port

Part Number: LPJ008A-FM



  • A midspan injector that’s 802.3af compatible for powered devices
  • Provides 15 W of safe Power over Ethernet (PoE) Plus power to each device
  • Supports Gigabit Ethernet data connections for high-speed equipment
  • Provides overvoltage and overcurrent overload protection as well as short circuit protection on the power output (per 802.3af specifications)
  • Over temperature protection. Shuts down automatically without being damaged
  • SNMP manageable



General
Speed 10/100/1000-Mbps
CE Approval Yes
Compliance cUL/UL®
Load Capacity LPJ008A-FM: 125W; LPJ016A-FM: 250W; LPJ024A-FM: 370W
Power AC input voltage range: 90-264 VAC; AC input voltage rating: 100-240 VAC, 47-63 Hz; Output: 15.4 W per port
RoHS Compliance Yes
Item Specifications
Connectors Data in: LPJ008A-FM: (8) RJ45;
LPJ016A-FM: (16) RJ45;
LPJ024A-FM: (24) RJ45

Data/PoE out: LPJ008A-FM: (8) RJ45;
LPJ016A-FM: (16) RJ45;
LPJ024A-FM: (24) RJ45

Management Port: (1) USB Type B, (1) RJ45 Ethernet
Power inlet: (1) I
Dimensions 1.75″H (1U) x 17.25″W x 9″D (4.4 x 44 x 23 cm)
Indicators Green LED: Power detected “ON”; Yellow LED: Fault detected
Weight 9 lb. (4.1 kg)
