Black Box ServView V KVM Tray – VGA, USB, PS/2, 8-Port Switch KVT517A-8UV

Part no: KVT517A-8UV | NSN: 7025-01-594-4759

Black Box ServView V KVM Tray – VGA, USB, PS/2, 8-Port Switch KVT517A-8UV

Call for Details | Why Can't I See a Price?

Touchpoint can assist with new and refurbished equipment in most cases.

Request a Quote

  • We are a B2B sales organisation & do not sell to individual consumers.
  • We are located in Australia and in most cases will not be able to sell outside AU/NZ
  • This field is hidden when viewing the form
  • This field is hidden when viewing the form
  • This field is hidden when viewing the form

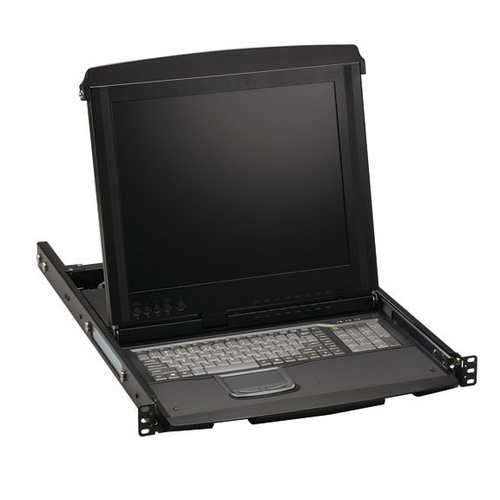

Black Box ServView V KVM Tray – VGA, USB, PS/2, 8-Port Switch

Part Number: KVT517A-8UV

  • Dual-rail console drawer features keyboard, touch pad, and LCD monitor in 1U.
  • Keyboard and LCD display slide in and out independently, enabling the monitor to remain visible while keyboard is stored.
  • Flip-open 17″ LCD panel supports resolutions up to 1280 x 1024.
  • Front-panel on-screen display (OSD) control and LED indicator enable adjustment of display image.
Active Display Area 13.3″ x 10.6″ (33.8 x 27 cm) squared
Adjustments On-screen display
CE Approval Yes
Contrast Ratio 500:1
Display 17″ TFT LCD
Display Color 262 k (RGB 6-bit)
Power 100-240-VAC universal switching power with 12-VDC, 4-A output
Resolution 1280 x 1024
Item Specifications
Dimensions 1.7″H x 17.3″W x 27.2″D (4.4 x 44 x 69 cm)
