Black Box USB C Docking Station USBC2000

Part no: USBC2000

Black Box USB C Docking Station USBC2000

Call for Details | Why Can't I See a Price?

Touchpoint can assist with new and refurbished equipment in most cases.

Request a Quote

  • We are a B2B sales organisation & do not sell to individual consumers.
  • We are located in Australia and in most cases will not be able to sell outside AU/NZ
  • This field is hidden when viewing the form
  • This field is hidden when viewing the form
  • This field is hidden when viewing the form

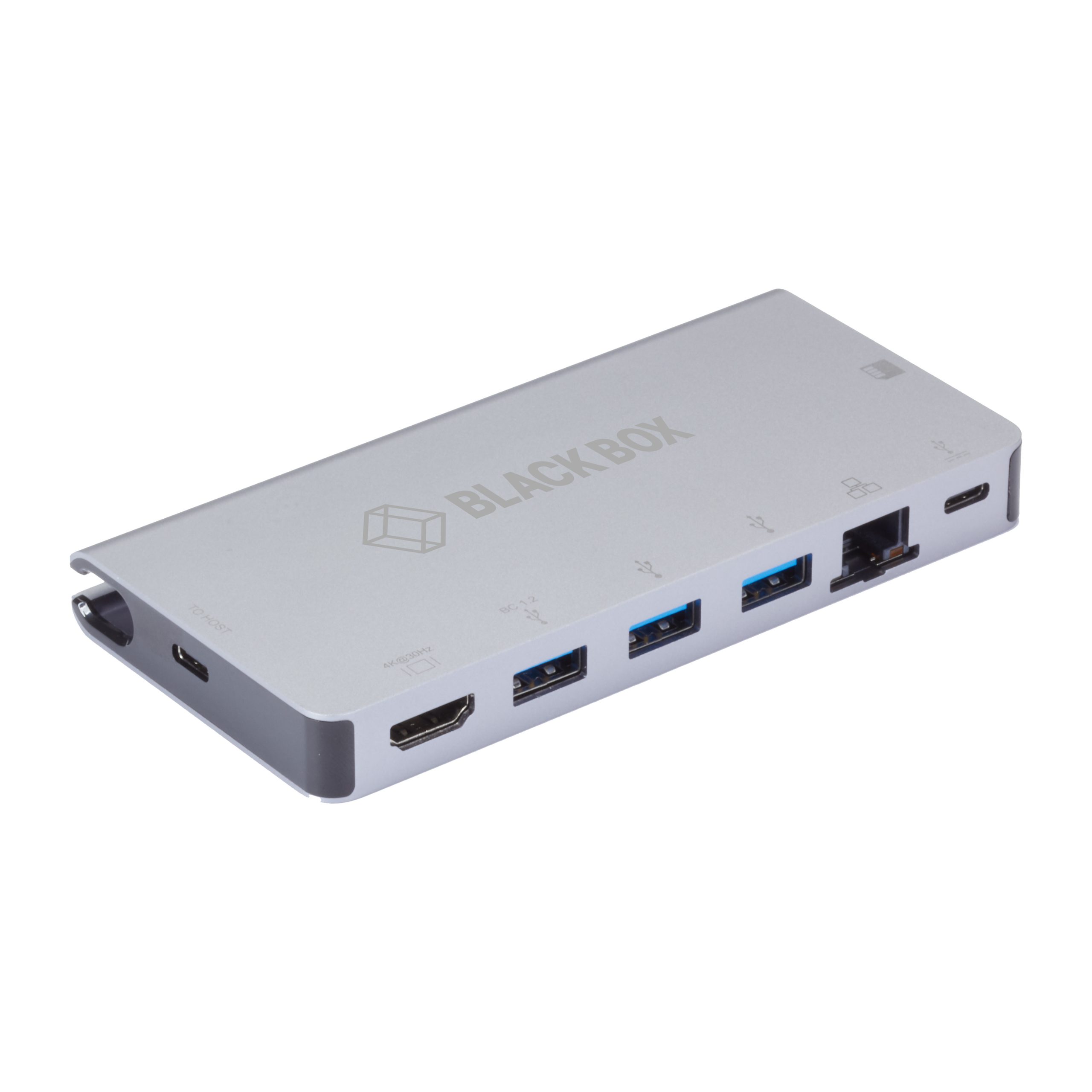

Black Box USB C Docking Station

Part Number: USBC2000



  • Supports HDMI resolution up to 4K x 2K @ 30 Hz
  • Includes a USB C host port and cable and a USB C charging port (up to 100W)
  • Supports 3 high speed USB 3.0 type A ports (up to 5 Gbps), one of which supports charging up to 7.5W (BC 1.2).
  • LAN port (RJ45) supports 10/100/1000-Mbps bandwidth
  • Power both the multiport adapter and your laptop, using your laptop’s USB-C power adapter (supports USB Power Delivery 3.0, up to 100W)



General
USB Charging (2) Type-C female ports support both data (5 Gbps) and PD Charging 100W (20 V / 5 A), plug and play; ŠSupports Fast Role Swap of PD 3.0, the connected device will not get disconnected when plugging in and out PD Adapter.
Connector Speed (3) USB 3.0 type A ports support super speed (5 Gbps) transmission, backwards-compatible with USB 2.0. ŠŠOne of the three USB-A ports supports BC 1.2, the power of this port can be up to 7.5W (5V/1.5A);
Supports Secure Digital v3.0 UHS-I (Ultra High Speed): SDR12 (12.5 Mbyte/s)/SDR25 (25 Mbyte/s)/SDR50 (50 Mbyte/s)/DDR50 (50 Mbyte/s)/ SDR104 (104 Mbyte/s) Allows SD and Micro SD card to work at the same time
Approvals FCC, CE, CAN ICES-3(B)/NMB-3(B)
Power A power supply is not required to operate the USBC2000. A power supply is not included with the USBC2000. If you plug your laptop’s USB-C power adapter into the USBC2000’s USB C charging port, it will send power to your PC over the USB-C host port (supports USB Power Delivery 3.0, up to 100W, 20V/5A) and will also send power to the USB type A charging port (supports BC 1.2, up to 7.5W, 5V/1.5A).
Item Specifications
Connectors Input: (1) USB-C Female (with Type-C M to M cable);
Output: (3) USB 3.0 Female;
(1) USB-C Female (for data & charging);
(1) RJ45;
(1) HDMI Female;
(1) Micro SDX;
(1) SD/MMCX;
(1) HDMI port: Supports HDMI resolution up to 4K @ 30 Hz
Dimensions .05″H x 5″W x 2.4″D (14.2 x 60.96 x 127mm)
